0300065/00

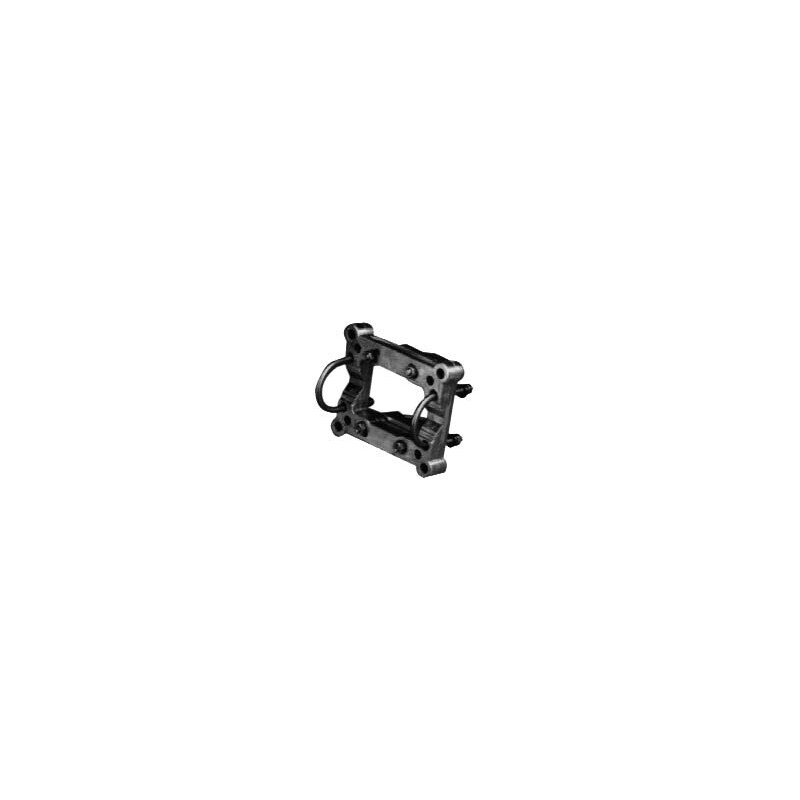

Cast Aluminium Cross Clamp, 25 – 50 mm / 50 – 100 mm, tilting

Find Out More
Data Sheet
CE Certification

Other Files

0300065/00
Electrical
Model 0300065/00
Mechanical
Clamp Type Cross clamp, tilting
Materials Clamp body – cast aluminium
Fixings – stainless steel
Tube 1 Size 25 – 50 mm / 0.98 – 1.97 in.
Historic Brand Jaybeam
Tube 2 Size 50 – 100 mm / 1.97 – 3.94 in.
  • Simliar to 0300284/00 (99284) but with facility for tilting, (±5°) to allow for rake of tower.
  • Use to attach 25 – 50 mm dia. antenna mast or boom to a mounting pipe using 50, 75 or 100 mm dia. U-Bolts.
  • U-Bolts to be ordered separately: 4884036/00 – A set of two M8 x 50 mm dia.
  • U-Bolts 4884076/00 – A set of two M8 x 75 mm dia. U-Bolts 4884035/00 – A set of two M8 x 100 mm dia. U-Bolts.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Cast Aluminium Cross Clamp, 25 – 50 mm / 50 – 100 mm, tilting 0300065/00
