0300284/00

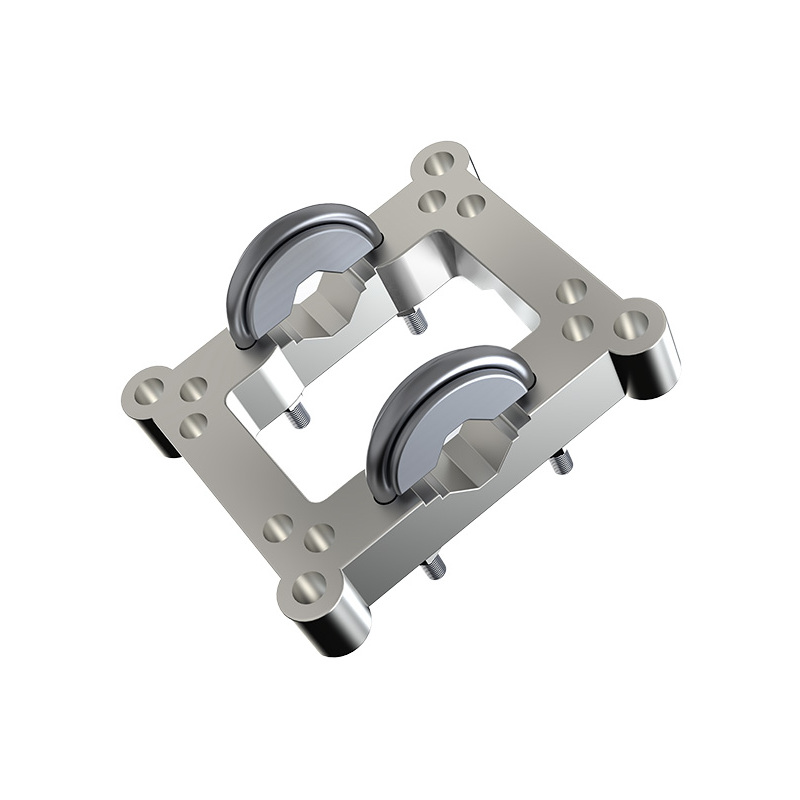

Cast Aluminium Cross Clamp, 25 – 50 mm / 50 – 125 mm

Find Out More
Data Sheet
CE Certification

Other Files

0300284/00
Electrical
Model 0300284/00
Mechanical
Clamp Type Cross clamp
Materials Clamp body – cast aluminium
Fixings – stainless steel
Tube 1 Size 25 – 50 mm / 0.98 – 1.97 in.
Historic Brand Amphenol Procom
Tube 2 Size 50 – 125 mm / 1.97 – 4.92 in.
Torque Max. M8: 25 – 30 Nm
Weight Approx. 0.96 kg / 2.12 lb.
Mounting 50 – 125 mm depends on U-Bolts
  • Use to attach 25 – 50 mm dia. antenna mast or boom to a mounting pipe using 50, 75,100 or 125 mm dia. U-Bolts.
  • U-Bolts used for mounting the bracket to the pole is to be ordered separately.
  • One set of two M8 x 50 mm dia. U-Bolts and two inserts.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Cast Aluminium Cross Clamp, 25 – 50 mm / 50 – 125 mm 0300284/00

Login required

You need to be logged in into your account to view downloadable documents.

Dimension

0300284 00 Dimension

All dimensions are given in mm [in.]

Mounting details

0300284 00 Mounting details
