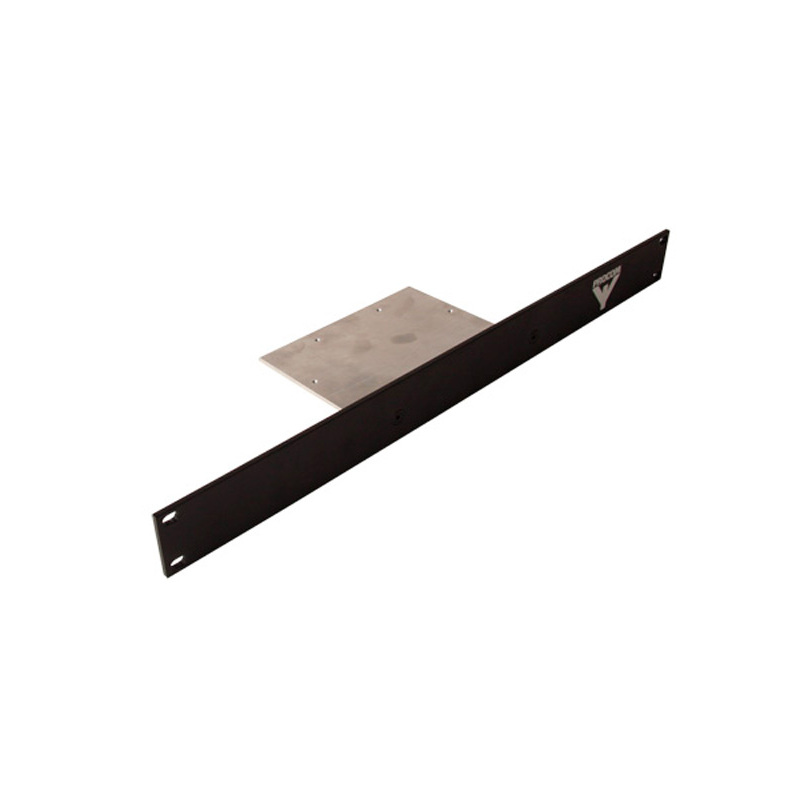

19″ Duplexer Mounting kit
Mechanical
Weight: DPF 600 g
Historic Brand Amphenol Procom
Dimensions 19” x 1HU x D.
(483 x 43 x 220 mm (DPF))
(483 x 43 x 130 mm (MPX))
Weight: MPX 500 g
  • For future solutions, integrating duplex filter with repeater.
  • Delivered unassembled and without filter (to be ordered seperately).
  • The 19″ Duplexer mounting kit with the Procom duplex filter MPX 2/6… , MPX 70/6… , DPF 2/6… and DPF 70/6 duplex filters are easily rack mounted.
  • The mounting kit is one unit (1HU) high and compatible with both types of Procom duplex filters, one for MPX filter and one for DPF filter.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Additional Information Add To Quote

19" MPX Mounting kit

 210002291 MPX filter

19" DPF Mounting kit

 210002327 DPF filter

Login required

You need to be logged in into your account to view downloadable documents.

Filter not included

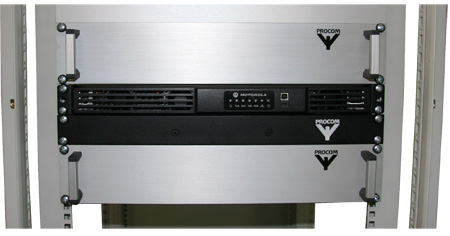

SLR-5500-in-Rack

CAN BE CLOSED ABOVE OR BELOW THE REPEATER

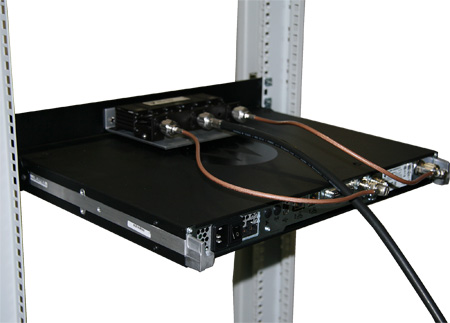

SLR-5500-UHF-back-1

TX AND RX CABLES CAN BE SWITCHED TO HIGH OR LOW ON THE FILTER

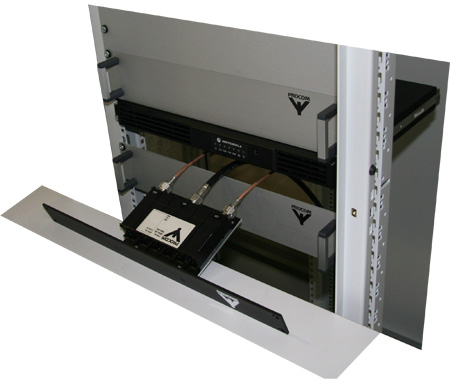

SLR-5500-UHF-side-front

CABLES CAN BE SWITCHED FROM THE FRONT

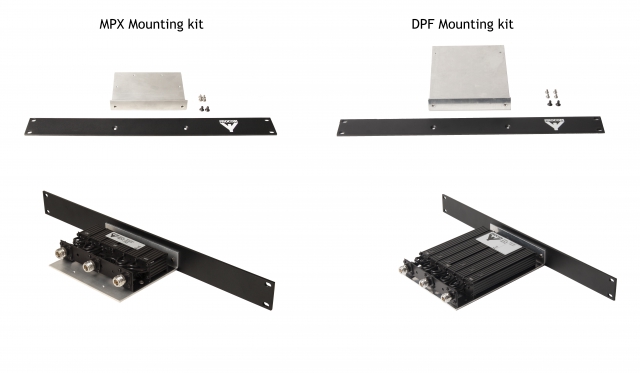

Mounting Kit

19 Duplexer Mounting kit

Additional Data
 MODEL19″ Duplexer Mounting kit
CONSISTS OF 1 HU Frontplate
1 Mounting plate
2 black M5x6 mm screw
4 M4x6 mm screw
To be ordered seperately:
Cables for Motorola SLR 5500		 500 mm RG 400  cable 50 Ohm N(m) straight /N(m) angle
500 mm RG 400  cable 50 Ohm N(m) straight / BNC(m)  angle
To be ordered seperately:
Cables for ICOM IC- FR5000 and FR6000		 500 mm RG 400  cable 50 Ohm N(m) straight / N(m) angle
500 mm RG 400  cable 50 Ohm N(m) straight / N(m) angle
To be ordered seperately:
Cables for HYTERA RD98x and RD98xS		 500 mm RG 400  cable 50 Ohm N(m) straight / N(m) angle
500 mm RG 400  cable 50 Ohm N(m) straight / N(m) angle
MECHANICAL
DIMENSIONS
(W x H x D)		 19” x 1HU x D.
(483 x 43 x 220 mm  (DPF))
(483 x 43 x 130 mm  (MPX))
WEIGHT: DPF 600 g.
WEIGHT: MPX 500 g.
