403.02-160

Low profile VHF vehicle ant. 150-170MHz

Find Out More
Data Sheet
CE Certification

Other Files

403.02-160
Electrical
Frequency 150-170MHz (3-4MHz Tx bandwidth, tuneable)
Max. Input Power 50 W
Polarisation Vertical
Impedance 50 Ω
VSWR < 2.0:1
Gain (EIA RS-329-1) -1.15 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Ground Plane Required 1.25m square minimum
Environmental
Operating temperature range -30 to 70 °C
Relative Humidity 5% to 95%RH
Ingress Protection IP67
Mechanical
Connection(s) BNC(m) on 5m RG58 cable
Materials Aluminium, PTFE, Brass, Nylon
Housing Material ABS
Colour Traffic White RAL9016
Historic Brand Skymasts
Dimensions 673 x 144 x 62 mm
Weight 1.5 kg / 3.31 lb
Mounting 2 x 25 mm holes, 517 mm centres

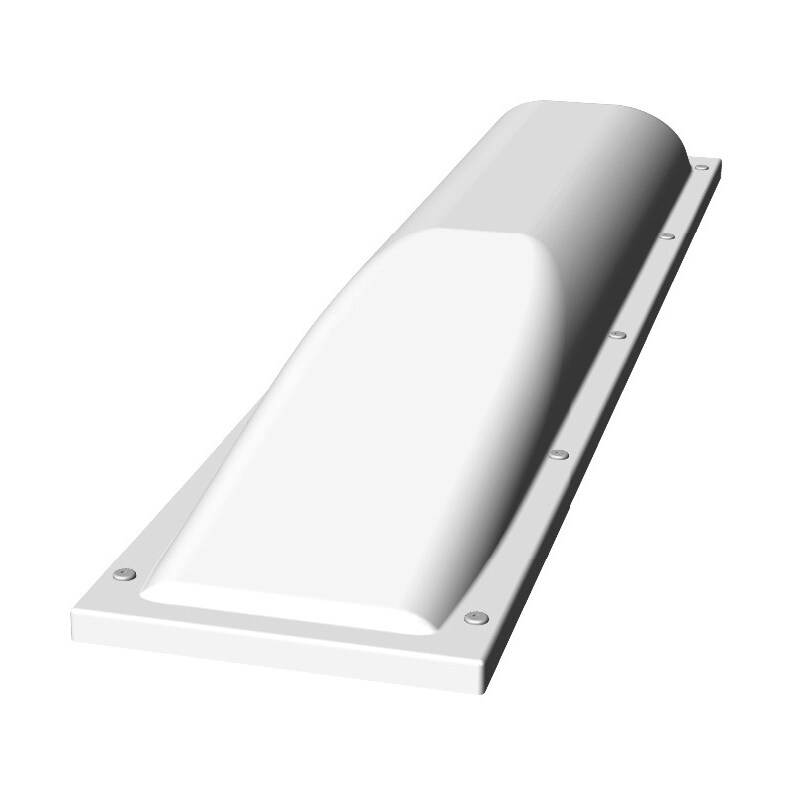

  • The 403.02 is a low profile VHF vehicle antenna, ideal for heavy duty transport logistics on buses and trucks. The unique radiator design offers minimal loss of efficiency when compared with a standard quarter-wave antenna. The antenna elements are protected by a tough ABS radome and is fixed to the vehicle with two robust mounting studs, which also provide a cable exit point from the antenna. The VHF element antenna is supplied with on-site tuning capability across a pre-set bandwidth. Cabling and connector configuration options are available.
  • • Former Skymasts brand product.

RADIATION PATTERNS

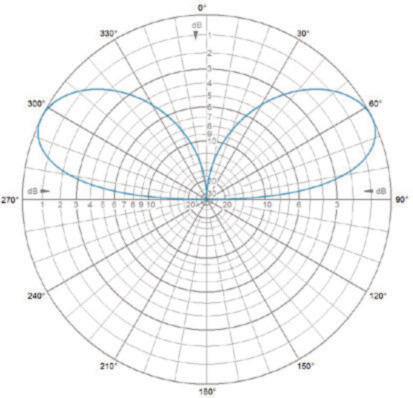

E-Plane | 160 MHz

E-Plane | 160 MHz

RADIATION PATTERNS

H-Plane | 160 MHz

H-Plane | 160 MHz
