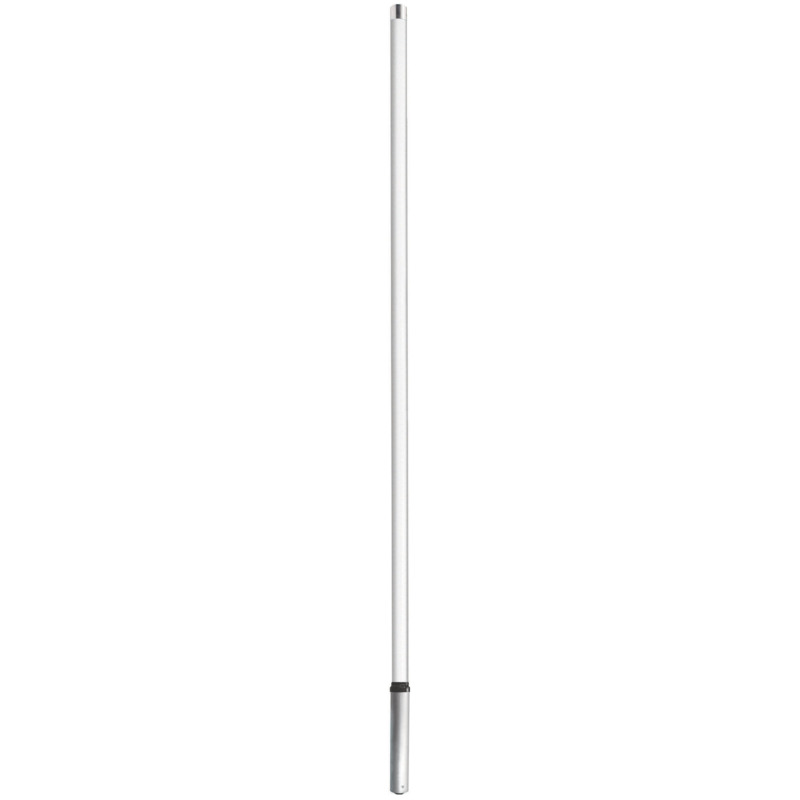

7.5 dBd HD LTE omni antenna 695 – 870 MHz, low PIM
Find Out MoreOther Files
| Electrical | |
| Model | 4240.75-780-T0 |
|---|---|
| Frequency | 695 – 870 MHz |
| Max. Input Power | 400 W |
| Omni Deviation | < ± 0.5 dB |
| 3 dB Beamwidth, H-Plane | Omnidirectional |
| Polarisation | Vertical |
| Peak Instantaneous Power (PIP) | 25 kW |
| 3 dB Beamwidth, E-Plane | 9° ±1° |
| Impedance | 50 Ω |
| Gain | 7.5 dBd (9.7 dBi) |
| VSWR | < 1.5:1 |
| Passive Intermodulation | -153 dBc (3rd Order, 2 x Tx @ 43 dBm) |
| Lightning Protection | Lightning current handling capability : 200 kA According to EN 62305-1 (Test pulse 10/350 μs) |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Survival Wind Speed | 300 km/h |
|---|---|
| Ingress Protection | IP56 |
| Mechanical | |
| Connection(s) | 7/16 DIN(f) |
|---|---|
| Materials | Antenna Base : Aluminium Shroud : GRP tube 53 mm dia. |
| Mounting Section | Al. tube 63.5 mm dia. x 350 mm long |
| Historic Brand | Amphenol Procom |
| Dimensions | 2900 (l) x 53 (dia.) mm / 114.17 x 2.09 (dia.) in. |
| Wind Load | 254 N (160 km/h) |
| Weight | Approx. 10.5 kg / 23.15 lb. |
| Mounting Bracket | 2141.01.00.00 (up to 120 mm dia.) (Ordered Separately) ETC-250 (50 to 76 mm dia.) (Ordered Separately) |
This product doesn’t have any diagrams yet.
| Model | Product No. | Add To Quote |
|---|---|---|
| 7.5 dBd HD LTE omni antenna 695 – 870 MHz, low PIM | 4240.75-780-T0 |
