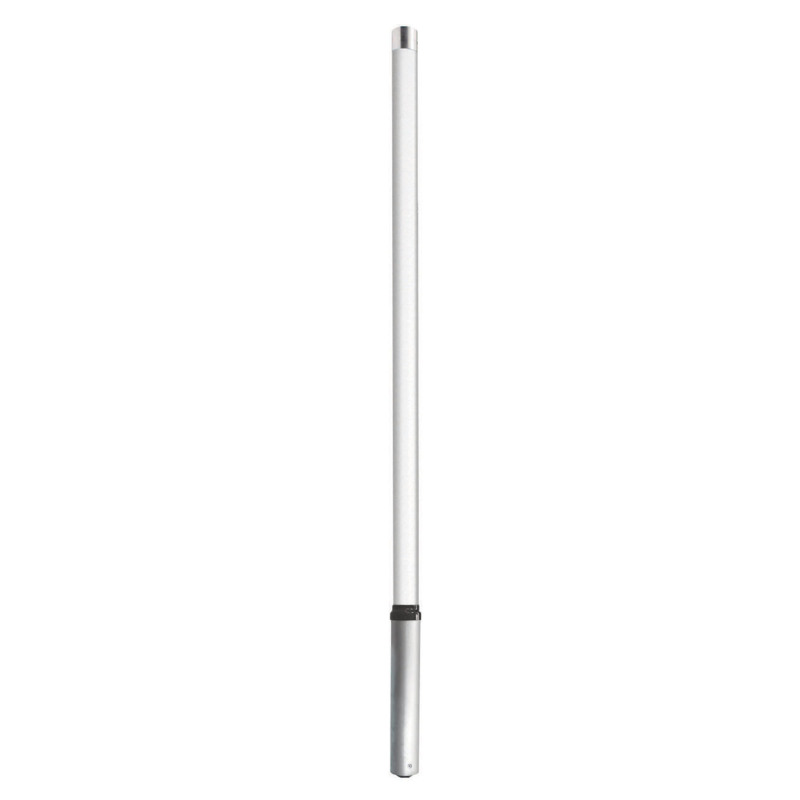

424x.03-875-Txx

3 dBd LTE omni antenna 790 – 960 MHz, low PIM

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

424x.03-875-Txx

Quickly identify the correct ordering code.

424x.03-875-Txx
Electrical
Model 424x.03-875-Txx
Frequency 790 – 960 MHz
Max. Input Power 350 W
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Peak Instantaneous Power (PIP) 25 kW
3 dB Beamwidth, E-Plane 32° ±1°
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Passive Intermodulation -153 dBc (3rd Order, 2 x Tx @ 43 dBm)
Lightning Protection Lightning current handling capability :
200 kA According to EN 62305-1 (Test pulse 10/350 μs)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Survival Wind Speed 300 km/h
Ingress Protection IP56
Mechanical
Connection(s) 7/16 DIN(f) or 4.3-10(f)
Materials Antenna Base : Aluminium
Shroud : GRP tube 53 mm dia.
Mounting Section Al. tube 63.5 mm dia. x 350 mm long
Historic Brand Amphenol Procom
Dimensions 1124 (l) x 53 (dia.) mm / 44.25 x 2.09 (dia.) in.
Wind Load 89 N (160 km/h)
Weight Approx. 5.5 kg / 12.13 lb.
Mounting Bracket 2141.01.00.00 (up to 120 mm dia.)
(Ordered Separately)

ETC-250 (50 to 76 mm dia.)
(Ordered Separately)
  • The 424x Series colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
  • The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, and allows tilted beam designs to be effectively employed without large pattern distortions.
  • High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.
  • The antenna has been designed to withstand lightning strike.

RADIATION PATTERNS

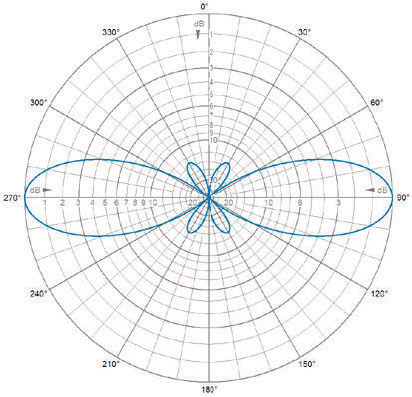

E-Plane | 875 MHz

E-Plane | 875 MHz

RADIATION PATTERNS

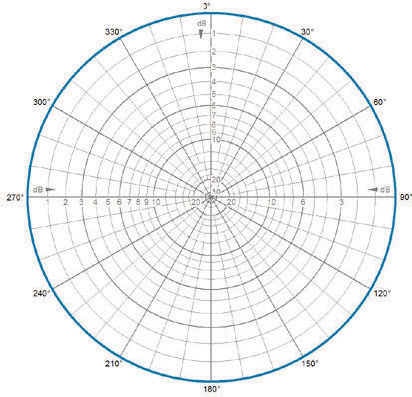

H-Plane | 875 MHz

H-Plane | 875 MHz

Model Product No. FrequencyAdditional Information Add To Quote

3 dBd LTE omni antenna, low PIM

 4240.03-875-T0 790 – 960 MHz 7/16 DIN(f) ; 0° Electrical Tilt

3 dBd LTE omni antenna, low PIM

 4240.03-875-T3 790 – 960 MHz 7/16 DIN(f) ; 3° Electrical Tilt

3 dBd LTE omni antenna, low PIM

 4240.03-875-T6 790 – 960 MHz 7/16 DIN(f) ; 6° Electrical Tilt

3 dBd LTE omni antenna, low PIM

 4243.03-875-T0 790 – 960 MHz 4.3-10(f) ; 0° Electrical Tilt

3 dBd LTE omni antenna, low PIM

 4243.03-875-T3 790 – 960 MHz 4.3-10(f) ; 3° Electrical Tilt

3 dBd LTE omni antenna, low PIM

 4243.03-875-T6 790 – 960 MHz 4.3-10(f) ; 6° Electrical Tilt

Login required

You need to be logged in into your account to view downloadable documents.

Note

Also available with ‘N’ Female connector with ordering code 4241.0x-875-Tx.  Passive Intermodulation level connot be guaranteed with ‘N’ connector.
