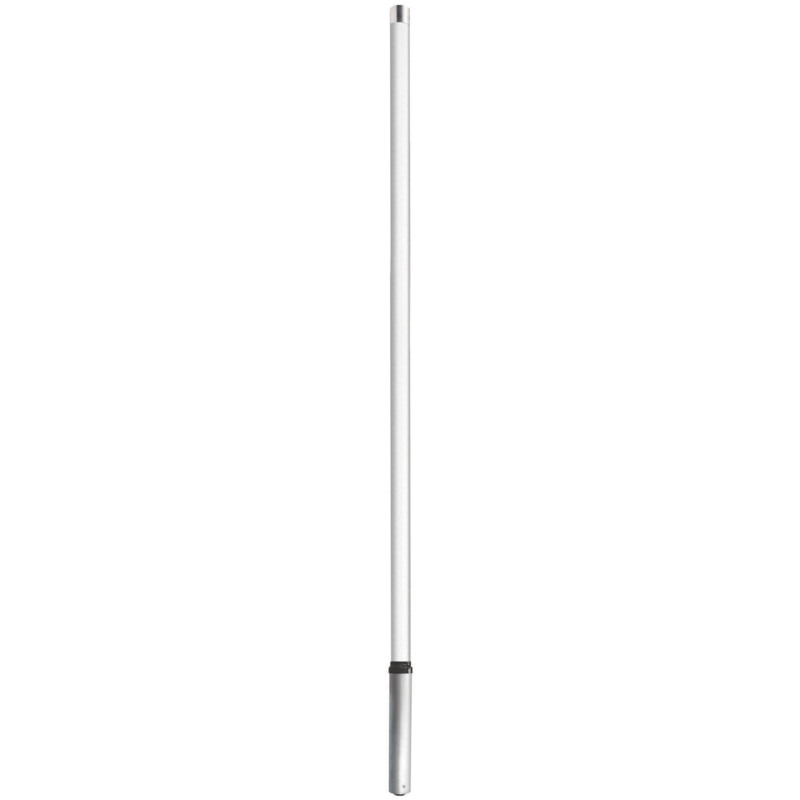

424x.06-780-Tx

6 dBd HD LTE omni antenna 695 – 870 MHz, low PIM

Other Files

Electrical
Model	424x.06-780-Tx
Frequency	695 – 870 MHz
Max. Input Power	400 W
Omni Deviation	< ± 1 dB
3 dB Beamwidth, H-Plane	Omnidirectional
Polarisation	Vertical
Peak Instantaneous Power (PIP)	25 kW
3 dB Beamwidth, E-Plane	15° ±1°
Impedance	50 Ω
Gain	6 dBd (8.2 dBi)
VSWR	< 1.5:1
Passive Intermodulation	-153 dBc (3rd Order, 2 x Tx @ 43 dBm)
Lightning Protection	Lightning current handling capability : 200 kA According to EN 62305-1 (Test pulse 10/350 μs)
Antistatic Protection	All metal parts DC-grounded (Connector shows a DC-short)

Mechanical
Connection(s)	7/16 DIN(f) or 4.3-10(f)
Materials	Antenna Base : Aluminium Shroud : GRP tube 53 mm dia.
Mounting Section	Al. tube 63.5 mm dia. x 350 mm long
Historic Brand	Amphenol Procom
Dimensions	1810 (l) x 53 (dia.) mm / 71.26 x 2.09 (dia.) in.
Wind Load	155 N (160 km/h)
Weight	Approx. 8 kg / 17.64 lb.
Mounting Bracket	2141.01.00.00 (up to 120 mm dia.) (Ordered Separately) ETC-250 (50 to 76 mm dia.) (Ordered Separately)

The 424x Series colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, and allows tilted beam designs to be effectively employed without large pattern distortions.
High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.
The antenna has been designed to withstand lightning strike.

RADIATION PATTERNS

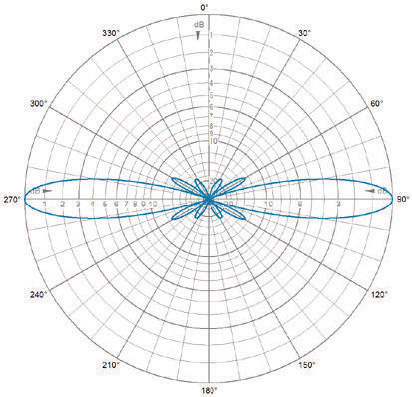

E-Plane | 780 MHz

RADIATION PATTERNS

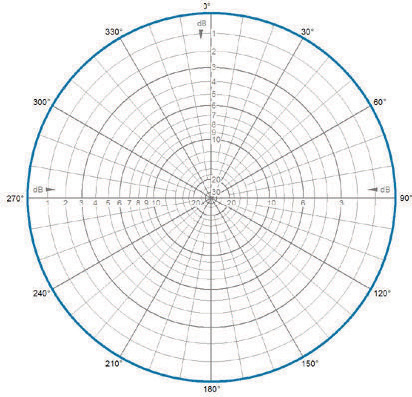

H-Plane | 780 MHz

Model	Product No.	Frequency	Additional Information
6 dBd HD LTE omni antenna, low PIM	4240.06-780-T0	695 – 870 MHz	7/16 DIN(f) ; 0° Electrical Tilt
6 dBd HD LTE omni antenna, low PIM	4240.06-780-T3	695 – 870 MHz	7/16 DIN(f) ; 3° Electrical Tilt
6 dBd HD LTE omni antenna, low PIM	4240.06-780-T6	695 – 870 MHz	7/16 DIN(f) ; 6° Electrical Tilt
6 dBd HD LTE omni antenna, low PIM	4243.06-780-T0	695 – 870 MHz	4.3-10(f) ; 0° Electrical Tilt
6 dBd HD LTE omni antenna, low PIM	4243.06-780-T3	695 – 870 MHz	4.3-10(f) ; 3° Electrical Tilt
6 dBd HD LTE omni antenna, low PIM	4243.06-780-T6	695 – 870 MHz	4.3-10(f) ; 6° Electrical Tilt
