425x.09-780-Tx

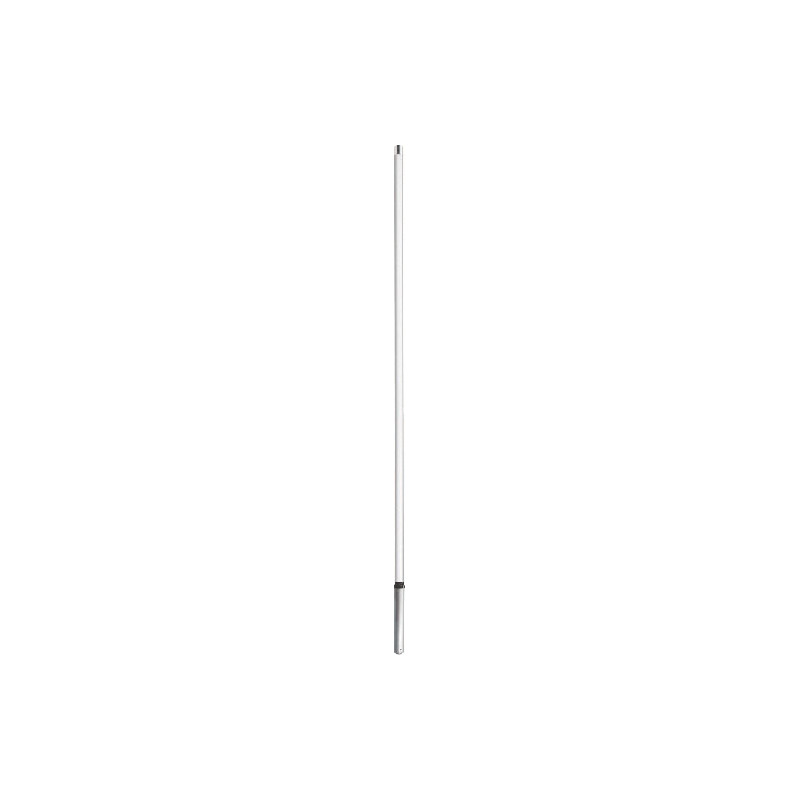

9 dBd HD omni antenna 695 – 870 MHz, low PIM, null fill

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

425x.09-780-Tx

Quickly identify the correct ordering code.

425x.09-780-Tx
Electrical
Model 425x.09-780-Tx
Frequency 695 – 870 MHz
Max. Input Power 400 W
Omni Deviation < ± 0.5 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Peak Instantaneous Power (PIP) 25 kW
3 dB Beamwidth, E-Plane 5.5° ±0.5°
Impedance 50 Ω
Gain 9 dBd (11.2 dBi)
VSWR < 1.5:1
Lower Sidelobe Control 25%
Passive Intermodulation -153 dBc (3rd Order, 2 x Tx @ 43 dBm)
Lightning Protection Lightning current handling capability: 200 kA According to EN 62305-1 (Test pulse 10/350 μs)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Survival Wind Speed 300 km/h
Ingress Protection IP56
Mechanical
Connection(s) 7/16 DIN(f) or 4.3-10(f)
Materials Antenna Base : Aluminium
Shroud : GRP tube 53mm dia.
Mounting Section Al. tube 63.5 mm dia. x 350 mm long
Length Approx. 4160 mm / 163.78 in.
Historic Brand Amphenol Procom
Wind Load 333 N (160 km/h)
Weight Approx. 9 kg / 19.84 lb.
Mounting Bracket 2141.01.00.00 (up to ø120 mm)
(Ordered Separately)

ETC-250 (ø50 to ø76 mm)
(Ordered Separately)
  • The 425x Series colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
  • The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, allows tilted beam designs to be effectively employed without large pattern distortions, and fills the lower pattern nulls.
  • High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.
  • The antenna has been designed to withstand lightning strike.

RADIATION PATTERNS

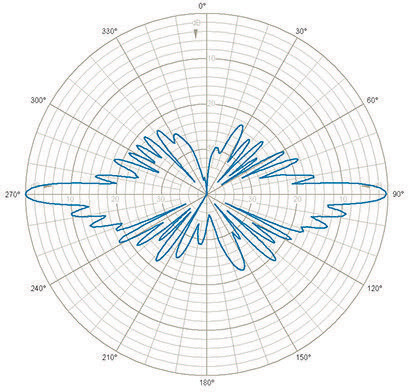

E-Plane | 780 MHz | 0°

E-Plane | 780 MHz | 0°

RADIATION PATTERNS

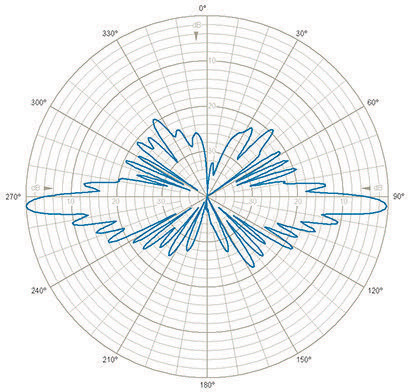

E-Plane | 780 MHz | 3°

E-Plane | 780 MHz | 3°

RADIATION PATTERNS

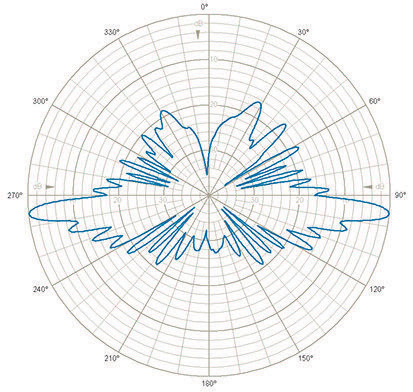

E-Plane | 780 MHz | 6°

E-Plane | 780 MHz | 6°

RADIATION PATTERNS

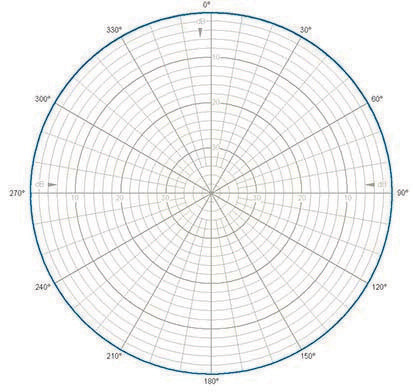

H-Plane | 780 MHz

H-Plane | 780 MHz

Model Product No. FrequencyAdditional Information Add To Quote

9 dBd HD omni antenna, low PIM, null fill

 4250.09-780-T0 695 – 870 MHz 7/16 DIN(f) ; 0° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4250.09-780-T2 695 – 870 MHz 7/16 DIN(f) ; 2° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4250.09-780-T3 695 – 870 MHz 7/16 DIN(f) ; 3° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4250.09-780-T4 695 – 870 MHz 7/16 DIN(f) ; 4° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4250.09-780-T5 695 – 870 MHz 7/16 DIN(f) ; 5° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4250.09-780-T6 695 – 870 MHz 7/16 DIN(f) ; 6° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4253.09-780-T0 695 – 870 MHz 4.3-10(f) ; 0° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4253.09-780-T2 695 – 870 MHz 4.3-10(f) ; 2° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4253.09-780-T3 695 – 870 MHz 4.3-10(f) ; 3° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4253.09-780-T4 695 – 870 MHz 4.3-10(f) ; 4° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4253.09-780-T5 695 – 870 MHz 4.3-10(f) ; 5° Electrical Tilt

9 dBd HD omni antenna, low PIM, null fill

 4253.09-780-T6 695 – 870 MHz 4.3-10(f) ; 6° Electrical Tilt
