428x.11-780-Tx

11 dBd HD omni antenna 740 – 870 MHz, low PIM, null fill

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

428x.11-780-Tx

Quickly identify the correct ordering code.

428x.11-780-Tx
Electrical
Frequency 740 – 870 MHz
Max. Input Power 600 W
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
Peak Instantaneous Power (PIP) 25 kW
3 dB Beamwidth, E-Plane 3° ±1°
Impedance 50 Ω
Gain 11 dBd (13.2 dBi)
VSWR < 1.5:1
Lower Sidelobe Control 25% Null Fill
Passive Intermodulation -153dBc (3rd Order, 2 x Tx @ 43dBm)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Survival Wind Speed 240 km/h
Ingress Protection IP56
Mechanical
Connection(s) 4280.11-780-Tx 7/16 DIN Female
4283.11-780-Tx 4.3/10 DIN Female
Materials Antenna Base: Aluminium LM25
Shroud: GRP tube 128mm dia.
Radiating element: Brass
Mounting Section Flanged base with 6 hole fixing on 190.5mm PCD
Length 5244 mm / 206.5 in.
Historic Brand Amphenol Procom
Wind Load 946 N (160km/h)
Weight 32 kg / 70.55 lb
  • The 428x Series colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
  • The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, allows tilted beam designs to be effectively employed without large pattern distortions, and fills the lower pattern nulls.
  • High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.

No content found

This product doesn’t have any diagrams yet.

Model Product No. FrequencyAdditional Information Add To Quote

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4280.11-780-T0 740 – 870 MHz 0° Tilt, 7/16(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4280.11-780-T1 740 – 870 MHz 1° Tilt, 7/16(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4280.11-780-T2 740 – 870 MHz 2° Tilt, 7/16(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4280.11-780-T3 740 – 870 MHz 3° Tilt, 7/16(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4280.11-780-T4 740 – 870 MHz 4° Tilt, 7/16(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4280.11-780-T5 740 – 870 MHz 5° Tilt, 7/16(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4283.11-780-T0 740 – 870 MHz 0° Tilt, 4.3/10(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4283.11-780-T1 740 – 870 MHz 1° Tilt, 4.3/10(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4283.11-780-T2 740 – 870 MHz 2° Tilt, 4.3/10(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4283.11-780-T3 740 – 870 MHz 3° Tilt, 4.3/10(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4283.11-780-T4 740 – 870 MHz 4° Tilt, 4.3/10(f)

11 dBd HD omni antenna 740-870MHz, low PIM, null fill

 4283.11-780-T5 740 – 870 MHz 5° Tilt, 4.3/10(f)

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Bracket

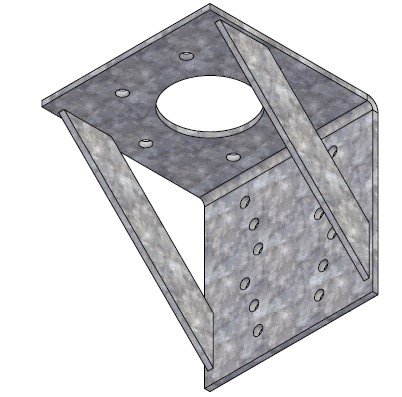

PoleMount Adapter 470.8100 for mounting antenna to 3″ – 4.5″ diameter pole.

Order antenna kit complete with bracket using part code 428x.11.780-Tx-BRKT

470 8100
