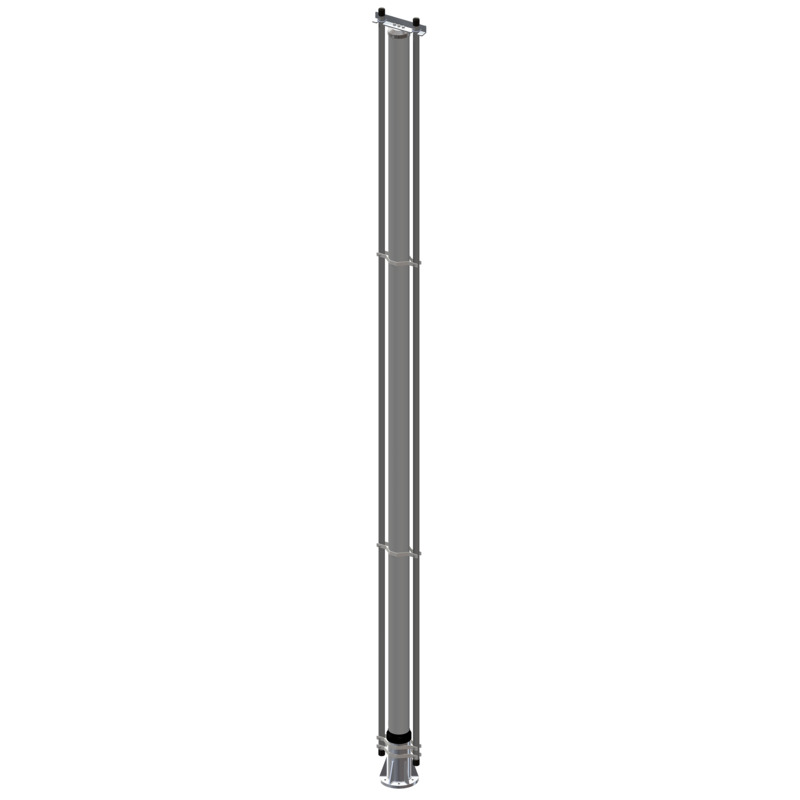

447x.15-780-Tx

13 dBd HD antenna, Elliptical (H) Pattern,
740 – 870 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

447x.15-780-Tx

Quickly identify the correct ordering code.

447x.15-780-Tx
Electrical
Frequency 740 – 870 MHz
Max. Input Power 600 W
3 dB Beamwidth, H-Plane 68° ±2°
Polarisation Vertical
Peak Instantaneous Power (PIP) 25 kW
3 dB Beamwidth, E-Plane 3° ±1°
Impedance 50 Ω
Gain 13 dBd (15.2 dBi)
VSWR < 1.5:1
Passive Intermodulation -153dBc (3rd Order, 2 x Tx @ 43dBm)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Survival Wind Speed 240 km/h
Ingress Protection IP56
Mechanical
Connection(s) 4470.15-780-Tx 7/16 DIN Female
4473.15-780-Tx 4.3/10 DIN Female
Materials Antenna Base: Aluminium LM25
Shroud: GRP tube 128mm dia.
Radiating element: Brass
Mounting Section Flanged base with 6 hole fixing on 190.5mm PCD
Length 5341 mm / 210.28 in.
Historic Brand Amphenol Procom
Wind Load 1264 N (160km/h)
Weight 47.6 kg / 104.94 lb
  • The 447xSeries colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
  • The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, allows tilted beam designs to be effectively employed without large pattern distortions, and fills the lower pattern nulls.
  • Reflectors are employed to give the antenna an elliptical radiation pattern in the azimuth plane.
  • High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.
Model Product No. Model Add To Quote

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4470.15-780-T0 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4470.15-780-T1 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4470.15-780-T2 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4470.15-780-T3 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4470.15-780-T4 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4470.15-780-T5 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4473.15-780-T0 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4473.15-780-T1 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4473.15-780-T2 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4473.15-780-T3 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4473.15-780-T4 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

 4473.15-780-T5 13 dBd HD antenna, Elliptical (H) Pattern, 740 – 870 MHz

Login required

You need to be logged in into your account to view downloadable documents.

Mounting Bracket

PoleMount Adapter470.8100 for mounting antenna to 3″ – 4.5″ diameter pole.

Order antenna kit complete with bracket using part code428x.11.780-Tx-BRKT

470 8100
