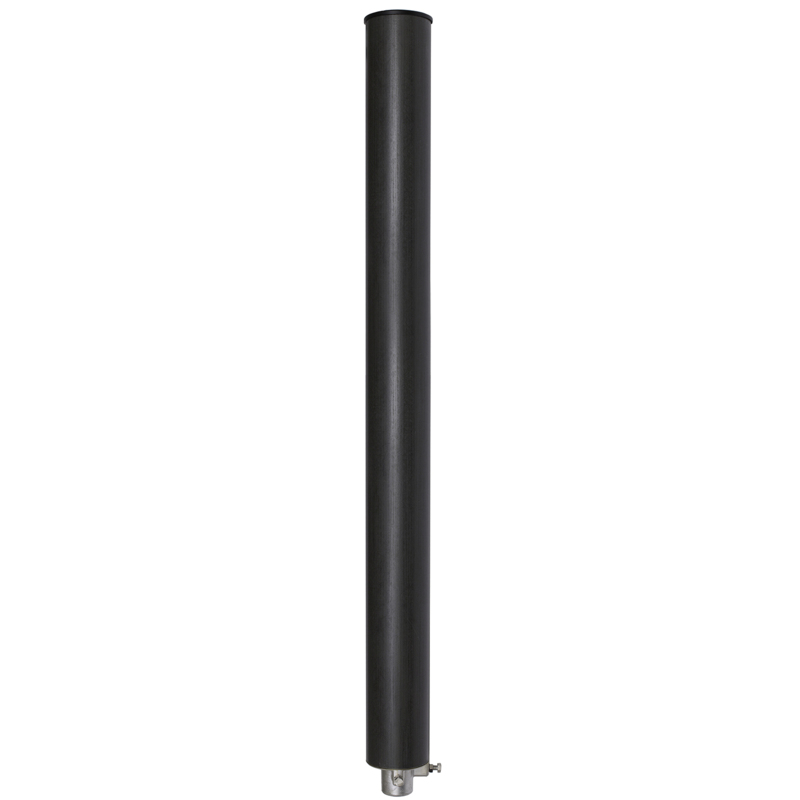

Wideband Ground-Air dipole, 0 dBd, 108 – 175 MHz
Find Out MoreOther Files
| Electrical | |
| Frequency | 108 – 175 MHz |
|---|---|
| Max. Input Power | 500 W |
| Omni Deviation | < ± 1 dB |
| 3 dB Beamwidth, H-Plane | Omnidirectional |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 80 ° |
| Impedance | 50 Ω |
| Gain | 0 dBd (2.2 dBi) |
| VSWR | < 2.0:1 |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Operating temperature range | -40 °C to +70 °C |
|---|---|
| Survival Wind Speed | 300 km/h |
| Mechanical | |
| Radiating Element(s) | 120 mm dia. aluminium tube |
|---|---|
| Connection(s) | N(f) |
| Radiator Feed | PTFE dielectric coaxial cable |
| Radome Material / Colour | GRP tube white, 128 mm dia. |
| Length | 470.01.05.00 – 2080 mm / 81.89 in. 470.01.05.10 – 2600 mm / 102.362 in. |
| Historic Brand | Skymasts |
| Wind Load | 470.01.05.00 – 324 N 470.01.05.10 – 405 N (160 km/h) |
| Weight | 470.01.05.00 – 6 kg / 13.23 lb. 470.01.05.10 – 7 kg / 15.43 lb. |
| Mounting | Integral base clamp mounts directly to 50 mm dia. pole |
RADIATION PATTERNS

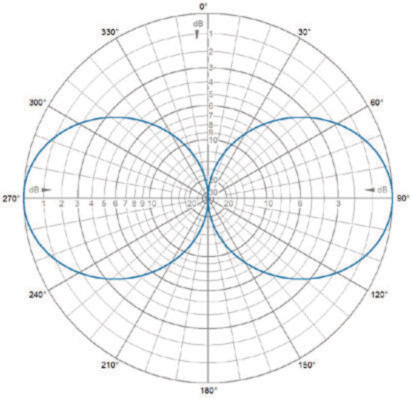

E-Plane | 142 MHz
RADIATION PATTERNS
H-Plane | 142 MHz
| Model | Product No. | Frequency | Additional Information | Add To Quote |
|---|---|---|---|---|
|
Wideband Ground-Air dipole, 0 dBd |
470.01.05.10 | 108 – 175 MHz | With metal top cap & lighting finial | |
|
Wideband Ground-Air dipole, 0 dBd |
470.01.05.01 | 108 – 175 MHz | Supplied with mounting kit |
