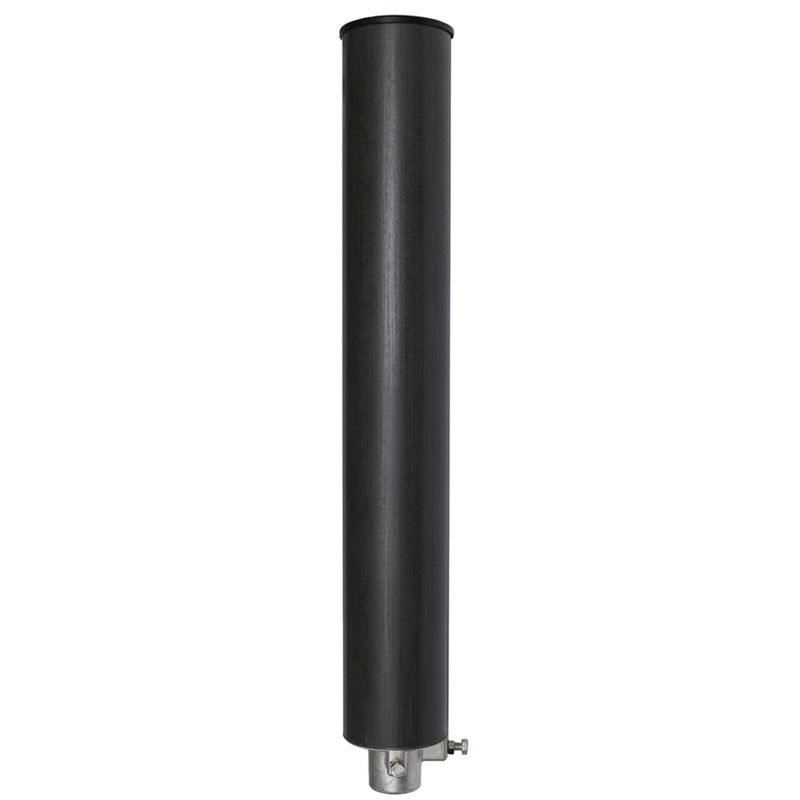

470.02.05.00

Wideband Ground-Air dipole, 0 dBd, 225 – 400 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

470.02.05.00

Quickly identify the correct ordering code.

470.02.05.00
Electrical
Frequency 225 – 400 MHz
Max. Input Power 500 W
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 2.0:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 °C to +70 °C
Survival Wind Speed 300 km/h (no ice)
220 km/h (20 mm radial ice)
Mechanical
Radiating Element(s) 120 mm dia. aluminium tube
Wind Area 0.169 sq. m / 1.82 sq. ft.
Connection(s) N(f)
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube white, 128 mm dia.
Length 1100 mm / 43.31 in.
Historic Brand Skymasts
Wind Load 210 N (160 km/h)
Weight 4 kg / 8.82 lb.
Mounting Integral base clamp mounts directly to 50 mm dia. pole
Nato Stock No. 5985-25-132-3733
  • The 470 Series of glassfibre omni antennas are designed for ground-to-air wide band applications and can also be used in military scenarios.
  • These antennas cater to the most stringent physical and environmental requirements, and they’ve been crafted to provide optimal performance across a wide bandwidth.
  • They are available in single dipole, multidipole, and colinear versions.

RADIATION PATTERNS

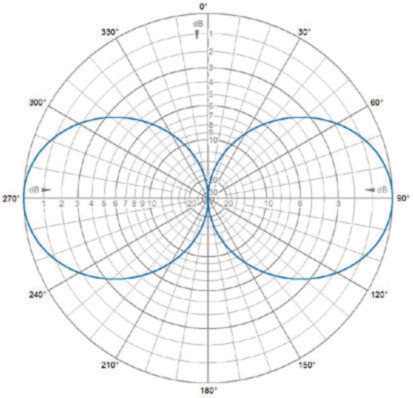

E-Plane | 312 MHz

E-Plane | 312 MHz

RADIATION PATTERNS

H-Plane | 312 MHz

H-Plane | 312 MHz

Model Product No. FrequencyAdditional Information Add To Quote

Wideband Ground-Air dipole, 0 dBd

 470.02.05.01 225 – 400 MHz Supplied with mounting kit

Wideband Ground-Air dipole, 0 dBd

 470.02.05.00G 225 – 400 MHz Coated NATO Green RAL6031
