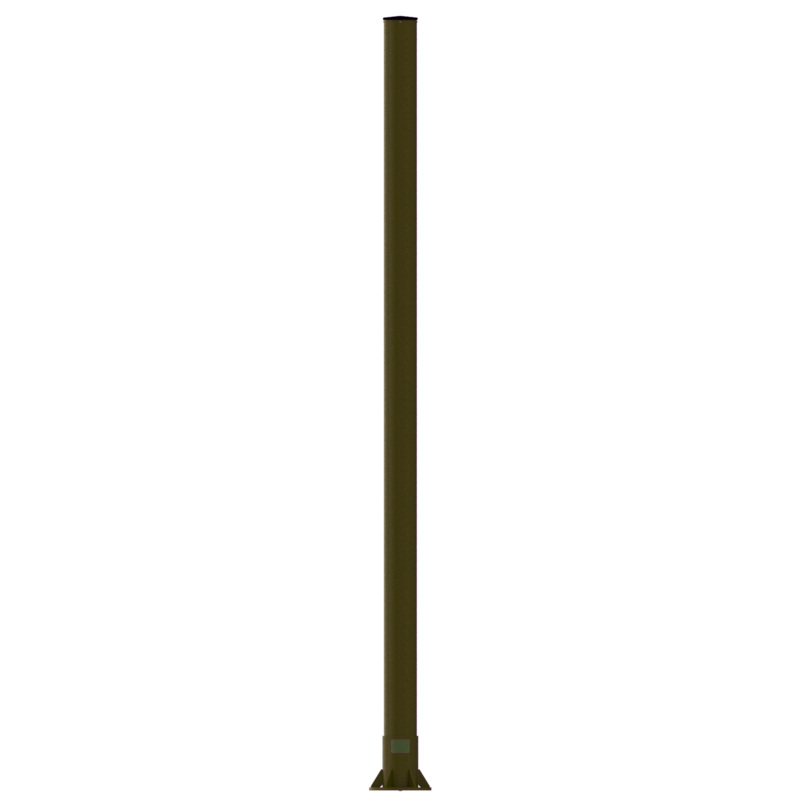

470.02.05.02

Ground-Air multi-dipole, 0 dBd 225 – 400 MHz

Find Out More
Data Sheet
CE Certification

Other Files

470.02.05.02
Electrical
Frequency 2 x 225 – 400 MHz
Max. Input Power 500 W
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
Port-Port Isolation ≥ 27dB
VSWR < 2.0:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 °C to +70 °C
Mechanical
Radiating Element(s) 120 mm dia. aluminium tube
Wind Area 0.584 sq. m / 6.29 sq. ft
Connection(s) 2 x N(f) on 500 mm RG400 cable
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube white, 128 mm dia.
Length 3922 mm / 154.41 in.
Historic Brand Skymasts
Wind Load 724 N (160 km/h)
Weight 18 kg / 39.68 lb.
Mounting Flanged base with six M14 fixing holes on 190 mm PCD
  • The 470 Series of glassfibre omni antennas are designed for ground-to-air wide band applications and can also be used in military scenarios.
  • These antennas cater to the most stringent physical and environmental requirements, and they’ve been crafted to provide optimal performance across a wide bandwidth.
  • They are available in single dipole, multidipole, and colinear versions.

RADIATION PATTERNS

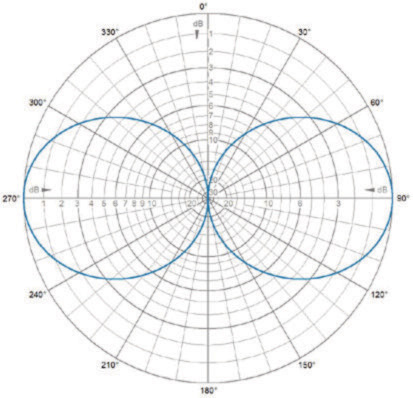

E-Plane | 312 MHz

E-Plane | 312 MHz

MOUNTING & DIAGRAMS

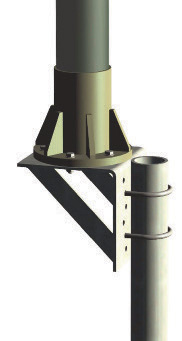

Mounting Accessories - 470.8100 Bracket

Mounting Accessories – 470.8100 Bracket

RADIATION PATTERNS

H-Plane | 312 MHz

H-Plane | 312 MHz
