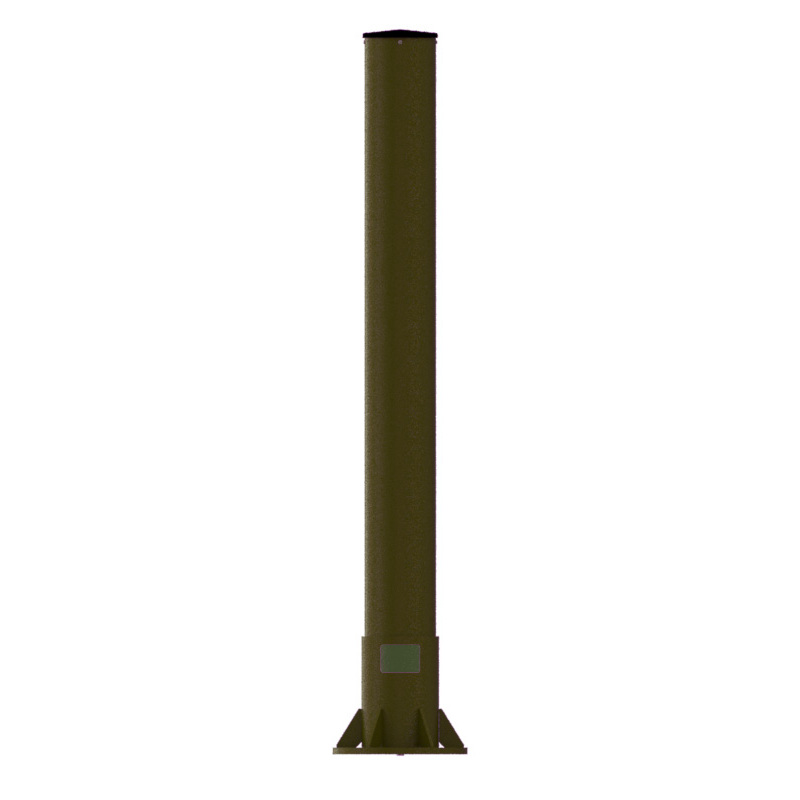

Wideband VHF/UHF dipole 100 – 400 MHz (F190 flange mount)
Find Out MoreOther Files
| Electrical | |
| Frequency | 100 – 400 MHz |
|---|---|
| Max. Input Power | 500 W |
| Omni Deviation | < ± 1 dB |
| 3 dB Beamwidth, H-Plane | Omnidirectional |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 80 ° |
| Impedance | 50 Ω |
| Gain | 0 dBd (2.2 dBi) |
| VSWR | < 2.0:1 |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Operating temperature range | -40 °C to +70 °C |
|---|---|
| Survival Wind Speed | 300 km/h |
| Mechanical | |
| Radiating Element(s) | 120 mm dia. aluminium tube |
|---|---|
| Wind Area | 0.23 sq. m / 2.48 sq. ft |
| Connection(s) | N(f) |
| Radiator Feed | PTFE dielectric coaxial cable |
| Radome Material / Colour | GRP tube white, 128 mm dia. |
| Length | 1500 mm / 59.06 in. |
| Historic Brand | Skymasts |
| Wind Load | 286 N (160 km/h) |
| Weight | 15 kg / 33.07 lb. |
| Mounting | Flanged base with six M14 fixing holes on 190 mm PCD |
RADIATION PATTERNS

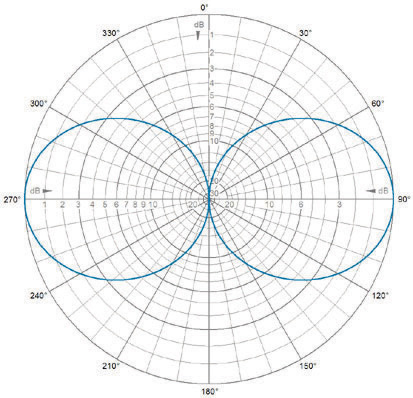

E-Plane | 250 MHz
MOUNTING & DIAGRAMS

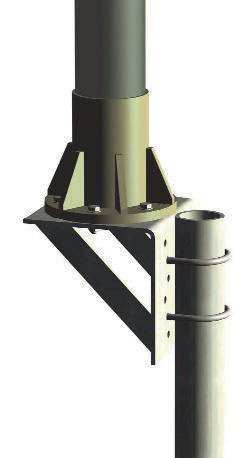

Mounting Accessories – 470.8100 Bracket
RADIATION PATTERNS

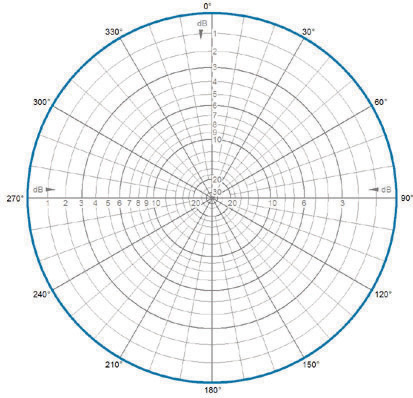

H-Plane | 250 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| Wideband VHF/UHF dipole 100 – 400 MHz (F190 flange mount) | 470.05.05.00-F190 |
