470.05.05.00

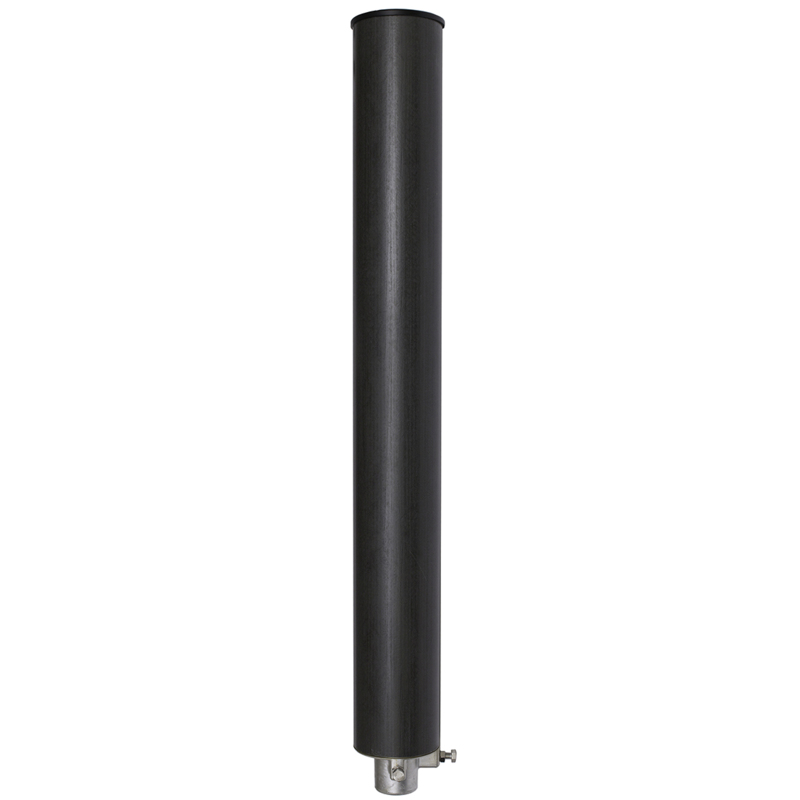

Wideband VHF/UHF Ground-Air dipole 100 – 400 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

470.05.05.00

Quickly identify the correct ordering code.

470.05.05.00
Electrical
Frequency 100 – 400 MHz
Max. Input Power 500 W
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 2.0:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 °C to +70 °C
Survival Wind Speed 300 km/h
Mechanical
Radiating Element(s) 120 mm dia. aluminium tube
Wind Area 0.23 sq. m / 2.48 sq. ft
Connection(s) N(f)
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube white, 128 mm dia.
Length 1500 mm / 59.06 in.
Historic Brand Skymasts
Wind Load 286 N (160 km/h)
Weight 7.5 kg / 16.53 lb.
Mounting Integral base clamp mounts directly to 50 mm dia. pole
  • The 470 Series of glassfibre omni antennas are designed for ground-to-air wide band applications and can also be used in military scenarios.
  • These antennas cater to the most stringent physical and environmental requirements, and they’ve been crafted to provide optimal performance across a wide bandwidth.
  • They are available in single dipole, multidipole, and colinear versions.

RADIATION PATTERNS

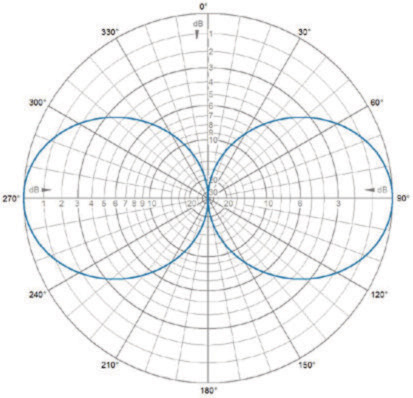

E-Plane | 250 MHz

E-Plane | 250 MHz

RADIATION PATTERNS

H-Plane | 250 MHz

H-Plane | 250 MHz

Model Product No. FrequencyAdditional Information Add To Quote

Wideband VHF/UHF Ground-Air dipole

 470.05.05.01 100 – 400 MHz Supplied with mounting kit

Wideband VHF/UHF Ground-Air dipole

 470.05.05.00G 100 – 400 MHz Coated NATO Green RAL6031
