470.06.33.00

FM dipole antenna, 0 dBd, 88 – 108 MHz, 1kW

Find Out More
Data Sheet
CE Certification

Other Files

470.06.33.00
Electrical
Frequency 88 – 108 MHz
Max. Input Power 1 kW
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 78° ±2°
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.4:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 °C to +70 °C
Ingress Protection IP56
Mechanical
Wind Area 0.322 sq. m / 3.47 sq. ft
Connection(s) 7/16 DIN(f)
Materials Base: Aluminium 6082T6
Shroud: GRP tube 128 mm dia.
Length 2400 mm / 94.49 in.
Historic Brand Skymasts
Wind Load 480 N (160 km/h)
Weight 7 kg / 15.43 lb.
Mounting Aluminium mounting pole section, ø50.8 mm / ø2 in.
  • The 470 Series of glassfibre omni antennas are designed for ground-to-air wide band applications and can also be used in military scenarios.
  • A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).

RADIATION PATTERNS

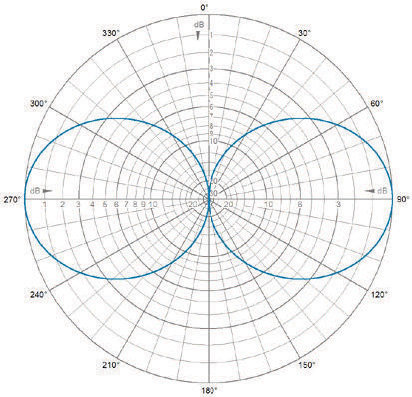

E-Plane | 98 MHz

E-Plane | 98 MHz

RADIATION PATTERNS

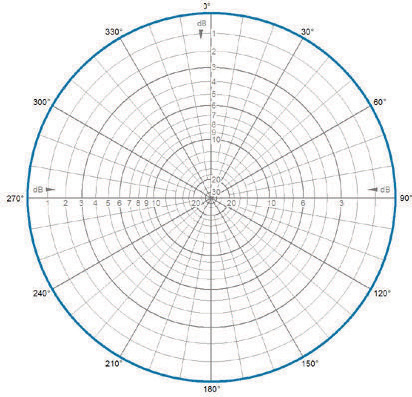

H-Plane | 98 MHz

H-Plane | 98 MHz
