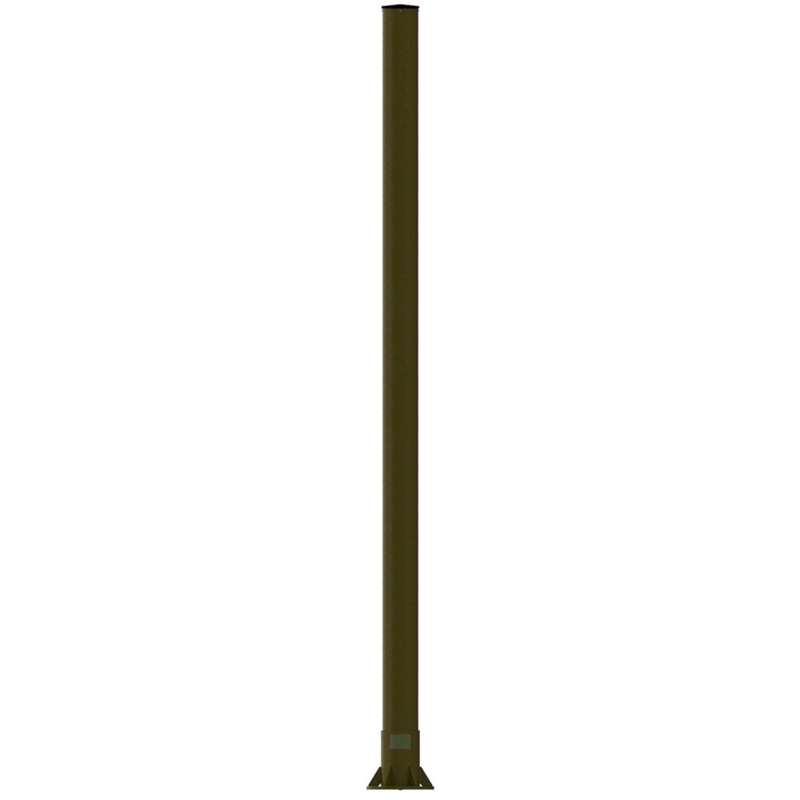

470.31.05.00

Wideband Ground-Air omni, 3 dBd, 108 – 175 MHz

Find Out More
Data Sheet
CE Certification

Other Files

470.31.05.00
Electrical
Frequency 108 – 175 MHz
Max. Input Power 500 W
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 40 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 2.0:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Survival Wind Speed 270 km/h
Mechanical
Radiating Element(s) 120 mm dia. aluminium tube
Wind Area 0.522 sq. m / 5.62 sq. ft.
Connection(s) N(f)
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube white,128 mm dia.
Length 3400 mm / 133.86 in.
Historic Brand Skymasts
Wind Load 648 N (160 km/h)
Weight 18 kg / 39.68 lb.
Mounting Flanged base with six M14 fixing holes on 190 mm PCD
  • The 470 Series of glassfibre omni antennas are designed for ground-to-air wide band applications and can also be used in military scenarios.
  • These antennas cater to the most stringent physical and environmental requirements, and they’ve been crafted to provide optimal performance across a wide bandwidth.
  • They are available in single dipole, multidipole, and colinear versions.

MOUNTING & DIAGRAMS

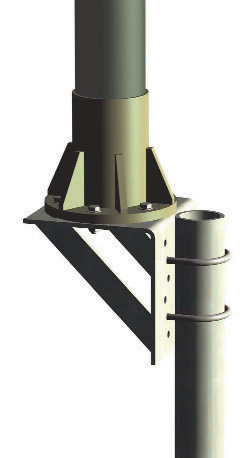

Mounting Accessories - 470.8100 Bracket

Mounting Accessories – 470.8100 Bracket

RADIATION PATTERNS

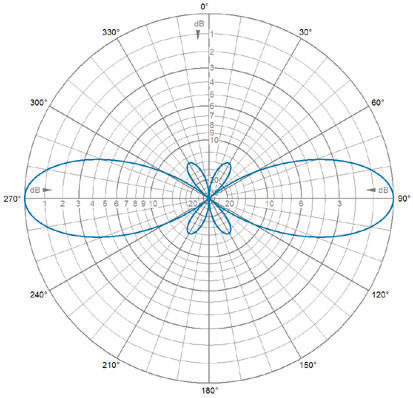

E-Plane | 142 MHz

E-Plane | 142 MHz

RADIATION PATTERNS

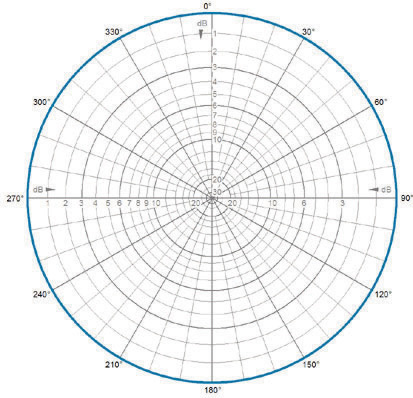

H-Plane | 142 MHz
