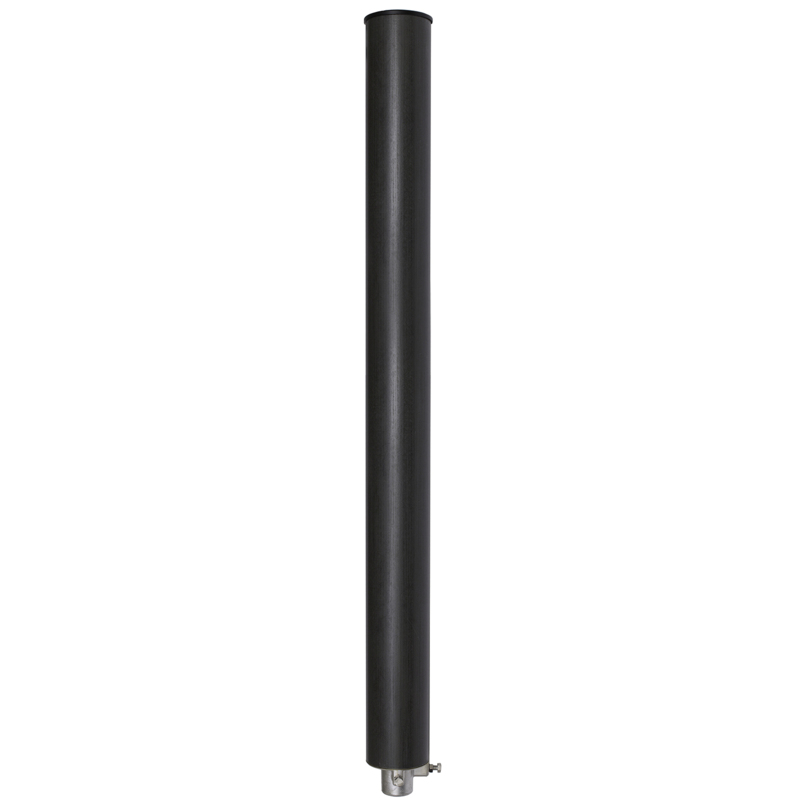

Wideband Ground-Air omni, 3 dBd, 225 – 400 MHz
Find Out MoreOther Files
| Electrical | |
| Frequency | 225 – 400 MHz |
|---|---|
| Max. Input Power | 500 W |
| Omni Deviation | < ± 1 dB |
| 3 dB Beamwidth, H-Plane | Omnidirectional |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 40 ° |
| Impedance | 50 Ω |
| Gain | 3 dBd (5.2 dBi) |
| VSWR | < 2.0:1 |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Environmental | |
| Survival Wind Speed | 270 km/h |
|---|---|
| Mechanical | |
| Radiating Element(s) | 120 mm dia. aluminium tube |
|---|---|
| Wind Area | 0.256 sq. m / 2.76 sq. ft |
| Connection(s) | N(f) |
| Radiator Feed | PTFE dielectric coaxial cable |
| Radome Material / Colour | GRP tube white, 128 mm dia. |
| Length | 2000 mm / 78.74 in. |
| Historic Brand | Skymasts |
| Wind Load | 324 N (160 km/h) |
| Weight | 9 kg / 19.84 lb. |
| Mounting | Integral base clamp mounts directly to 50 mm dia. pole |
| Nato Stock No. | 5985-99-667-6432 |
RADIATION PATTERNS

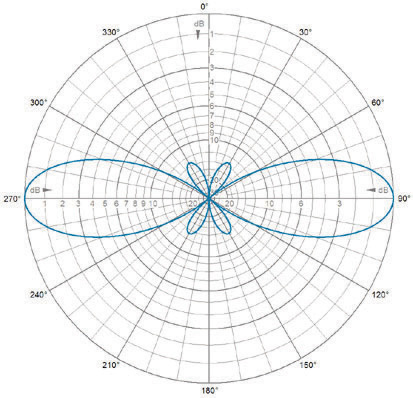

E-Plane | 312 MHz
RADIATION PATTERNS

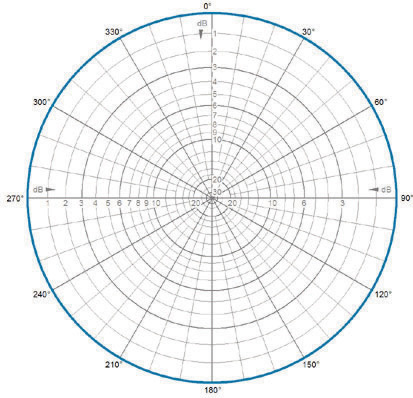

H-Plane | 312 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| Wideband Ground-Air omni, 3 dBd, 225 – 400 MHz | 470.32.05.00 |
