470.34.33.00 - Amphenol Procom 470.34.33.00 - Amphenol Procom

470.34.33.00

High power DAB omni antenna, 3 dBd, 208 – 235 MHz

Find Out More
Data Sheet
CE Certification

Other Files

470.34.33.00
Electrical
Frequency 208 – 235 MHz
Max. Input Power 1.5kW
Omni Deviation < ± 1 dB
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 40 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.25:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Radiating Element(s) 120 mm dia. aluminium tube
Connection(s) 7/16 DIN(f)
Radiator Feed PTFE dielectric coaxial cable
Radome Material / Colour GRP tube white, 128mm dia.
Length 2300 mm / 90.55 in.
Historic Brand Skymasts
Wind Load 438 N (160 km/h)
Weight 6 kg / 13.23 lb.
Mounting Aluminium mounting pole section, ø50.8 mm / ø2 in.
  • The 470 Series of glassfibre omni antennas are designed for ground-to-air wide band applications and can also be used in military scenarios.
  • These antennas cater to the most stringent physical and environmental requirements, and they’ve been crafted to provide optimal performance across a wide bandwidth.
  • They are available in single dipole, multidipole, and colinear versions.

RADIATION PATTERNS

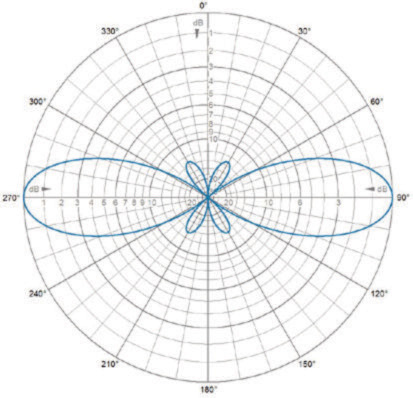

E-Plane | 222 MHz

E-Plane | 222 MHz

RADIATION PATTERNS

H-Plane | 222 MHz

H-Plane | 222 MHz
