472.01.05.00 - Amphenol Procom 472.01.05.00 - Amphenol Procom

472.01.05.00

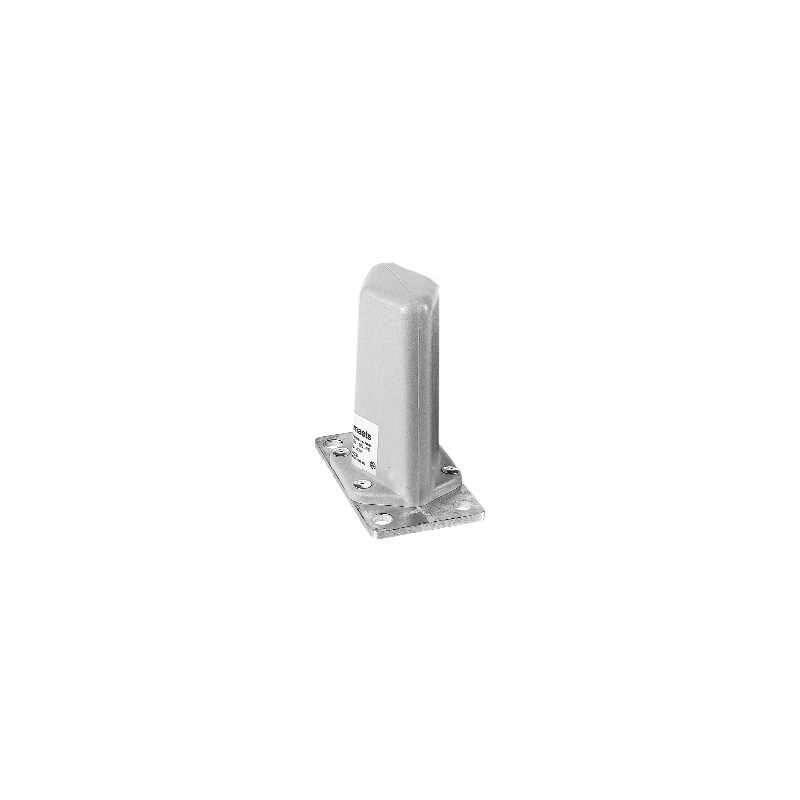

Broadband vehicle/train antenna 380-470 MHz

Find Out More
Data Sheet
CE Certification

Other Files

472.01.05.00
Electrical
Frequency 380 – 470 MHz
Max. Input Power 250 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
VSWR < 2.0:1
Gain (EIA RS-329-1) 0 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Ground Plane Required 500 mm square minimum
Environmental
Ingress Protection IP67 (When installed on vehicle)
Mechanical
Connection(s) N(f)
Radiator Material Brass
Radome Material / Colour Polyurethane, light grey
Historic Brand Skymasts
Dimensions 145 x 80 x 140 mm
Wind Load 18 N (160km/h)
Corrosion Protection Surtec 650
Weight 0.5 kg / 1.10 lb
Mounting 4 x M12 Bolts stainless steel grade A2-70
  • These antennas are omni-directional and suited for operation on vehicles in harsh environments. Using a quarter wave radiator, they are short and very robust, and offer a wide operating bandwidth. They are d.c. grounded, and intended for installation on conductive surfaces. The 472 is covered by a radome of tough moulded polyurethane.
  • • Former Skymasts brand product.

RADIATION PATTERNS

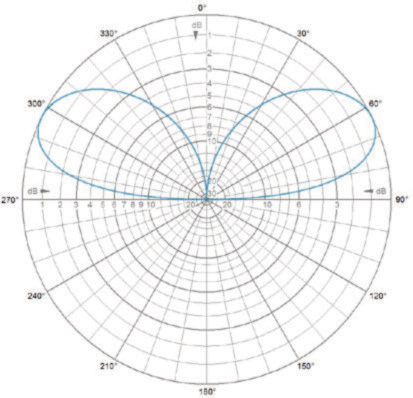

E-Plane | 425 MHz

E-Plane | 425 MHz

RADIATION PATTERNS

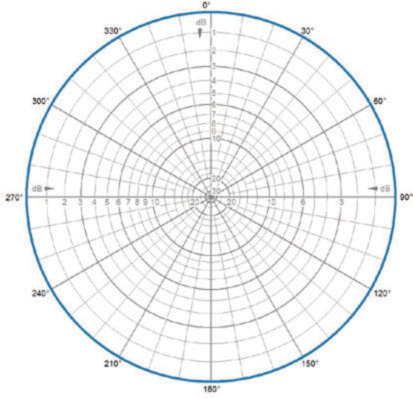

H-Plane | 425 MHz

H-Plane | 425 MHz

Model Product No. Add To Quote
Broadband vehicle/train antenna 380-470 MHz 472.01.05.00
