5047000 - Amphenol Procom 5047000 - Amphenol Procom

5047000

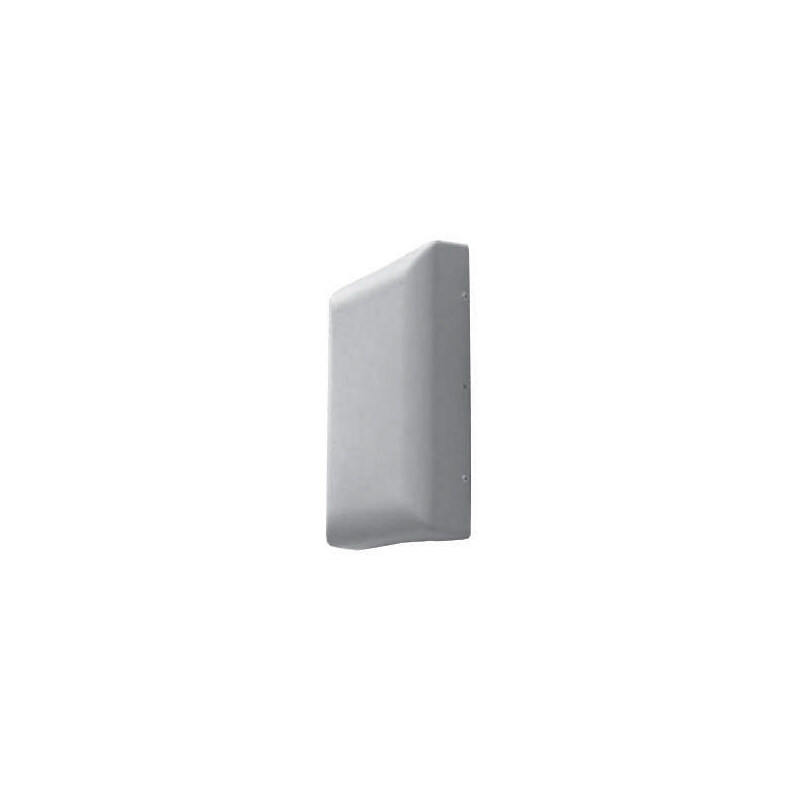

TETRA indoor panel 380 – 400 MHz

Find Out More
Data Sheet
CE Certification

Other Files

5047000
Electrical
Model 5047000
Frequency 380 – 400 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane 106 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 112 °
Impedance 50 Ω
Gain 2.4dBd / 4.6dBi
VSWR < 1.5:1
Front-To-Back Ratio > 10 dB
Passive Intermodulation -143 dBc (PIM value for N-type connector only applicable at date of manufacture)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
In iBwave Yes
Mechanical
Connection(s) N(f), 4.1/9.5 Mini-DIN(f) or 7/16(f) with 0.5 m RG303 Cable
Materials Housing – Aluminum
Radome Material / Colour UV Resistant, Halogen Free FR ABS / White (UL94V-O, CAA no. 8 Sec2.2b, FAR25.853b)
Historic Brand Jaybeam
Dimensions 305 x 225 x 60 mm / 12.0 x 8.86 x 2.36 in.
Wind Load 85 N (160 km/h)
Weight Approx. 1.05 kg / 2.31 lb.
Mounting Integrated wall mounting bracket
  • A single band, vertically polarized, indoor/outdoor, UHF panel antenna.
  • Designed to provide fi ll-in coverage in TETRA networks, easy to install using the integrated wall mounting.
  • Former Jaybeam brand product.

RADIATION PATTERNS

E-Plane | 390 MHz

E-Plane | 390 MHz

RADIATION PATTERNS

H-Plane | 390 MHz

H-Plane | 390 MHz
