Multi Band Ceiling Mount Omni, 695-960 / 1710-6000 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

5052400

Quickly identify the correct ordering code.

5052400
Electrical
Model 5052400
Frequency
695 – 960 MHz1710 – 6000 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 60 °
Gain
-0.1dBd / 2.1dBi2.8 dBd / 5 dBi
VSWR < 2.5:1 (Full Band)
< 1.8:1 (806-960 & 1710-2500 MHz)
Passive Intermodulation -153dBc (3rd Order, 2 x Tx@ 40dBm)
PIM value for N-Type only applicable at date of manufacture
In iBwave Yes
Mechanical
Connection(s) N-Type (f), 4.1/9.5 Mini-DIN(f) or 7/16 DIN(f) 0.3 m (11.8 in) RG303 Cable / Rear
Radiator Material PCB
Radome Material / Colour UV Stable ABS White
Historic Brand Jaybeam
Dimensions 250 x 117 mm / 9.8 x 4.6 in.
Weight Approx. 0.35 kg / 0.77 lb.
Mounting Screws supplied (3 holes in the base) for ceiling mounting
Back Plate Material Aluminium
  • A wideband, discreet ceiling mounted omni antenna for use in DAS systems covering 2G/3G/4G and 5G cellular bands.
  • Supplied with screws for ceiling mounting or a bracket for wall mounting.
  • Former Jaybeam brand product.

RADIATION PATTERNS

H-Plane

H-Plane

RADIATION PATTERNS

E-Plane | 900 MHz

E-Plane | 900 MHz

RADIATION PATTERNS

E-Plane | 1800 MHz

E-Plane | 1800 MHz

RADIATION PATTERNS

E-Plane | 1900 MHz

E-Plane | 1900 MHz

RADIATION PATTERNS

E-Plane | 2100 MHz

E-Plane | 2100 MHz

Model Product No. FrequencyAdditional Information Add To Quote

Multi Band Ceiling Mount Omni

 5052400-DIN 695-960 MHz / 1710-6000 MHz Antenna with 7/16-DIN Connector – with Mounting Screws

Multi Band Ceiling Mount Omni

 5052400-mDIN 695-960 MHz / 1710-6000 MHz Antenna with 4.1/9.5 Mini-DIN Connector

Multi Band Ceiling Mount Omni

 5052400L 695-960 MHz / 1710-6000 MHz Antenna with N-Type Connector & L Bracket

Multi Band Ceiling Mount Omni

 5052400L-DIN 695-960 MHz / 1710-6000 MHz Antenna with 7/16-DIN Connector & L Bracket

Multi Band Ceiling Mount Omni

 5052400L-mDIN 695-960 MHz / 1710-6000 MHz Antenna with 4.1/9.5 Mini-DIN Connector & L Bracket

Login required

You need to be logged in into your account to view downloadable documents.

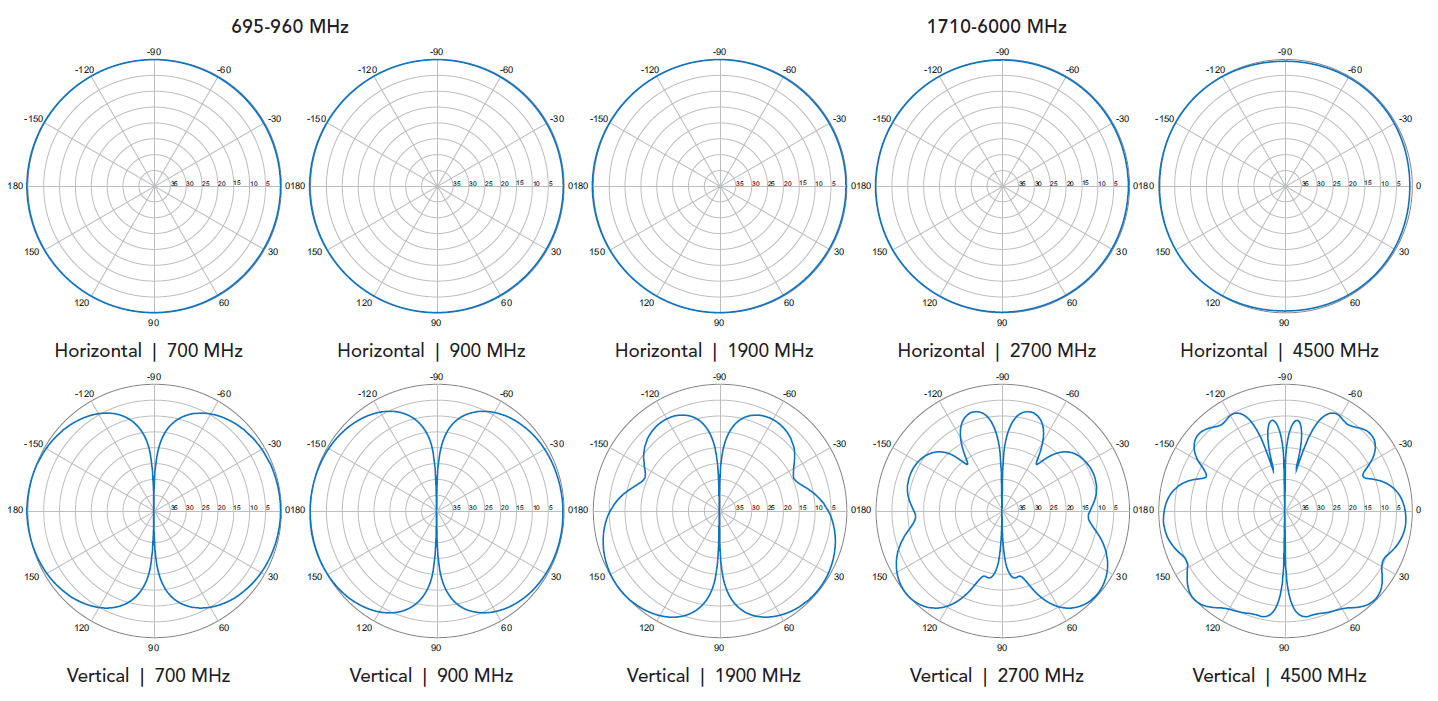

Typical Radiation Patterns
 5052400 Pattern Images
 Mounting Kit #21210000 (L-Bracket)
 5052400 Mounting Bracket
