| Electrical | |
| Model | 7039420 |
|---|---|
| Frequency | 420 – 470 MHz |
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 150 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 75 ° |
| Impedance | 50 Ω |
| Gain | 3 dBd (5.2 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 12 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 32 mm dia. aluminium elements, 12.7 mm dia. aluminium balun, Fully moulded enclosure |
| Length | Approx. 670 mm / 26.38 in. |
| Historic Brand | Jaybeam |
| Wind Load | 46 N (160 km/h) |
| Weight | Approx. 1.2 kg / 2.65 lb. |
| Mounting Bracket | 3202078/68 + 3201079/00 (Ordered Separately) |
| Alternate Mounting Bracket | 0900912/00, 0302032/68, or 0300064/00 + U-Bolts to match mounting pipe diameter (Ordered Separately) |

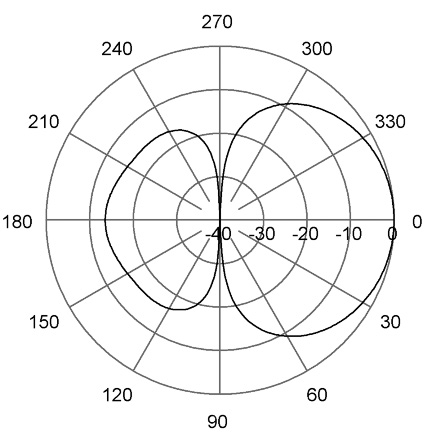

RADIATION PATTERNS
E-Plane | 445 MHz

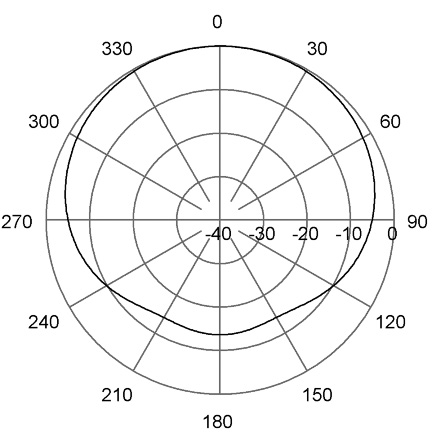

RADIATION PATTERNS
H-Plane | 445 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

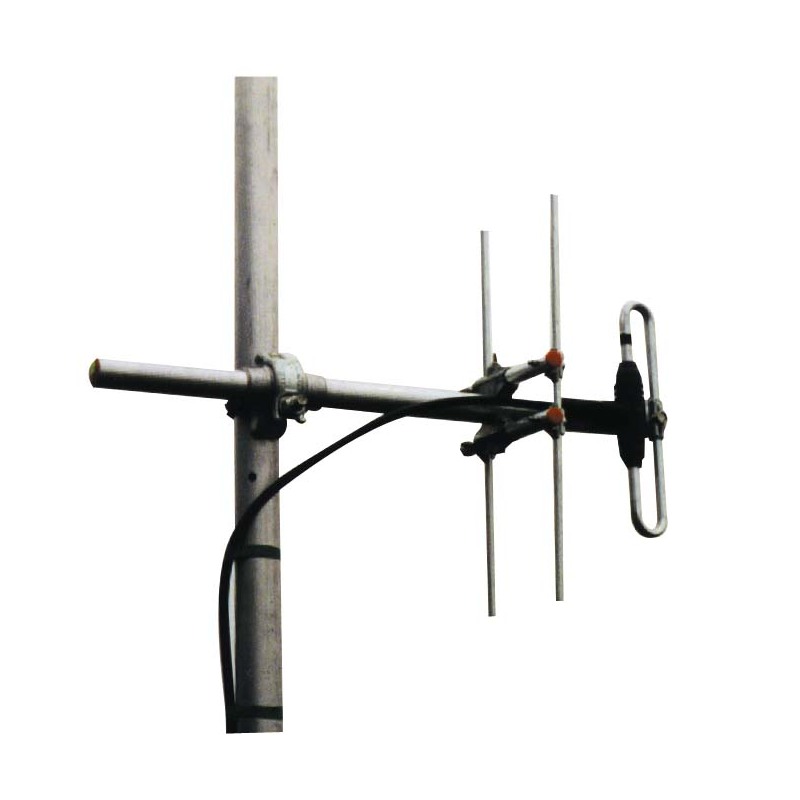

| 2 element Yagi 420 – 470 MHz | 7039420 |
