| Electrical | |
| Model | 7040345 |
|---|---|
| Frequency | 330 – 360 MHz |
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 120 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 70 ° |
| Impedance | 50 Ω |
| Gain | 5 dBd (7.2 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 15 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 32 mm dia. aluminium elements, 12.7 mm dia. aluminium balun, Fully moulded enclosure |
| Length | Approx. 700 mm / 27.56 in. |
| Historic Brand | Jaybeam |
| Wind Load | 69 N (160 km/h) |
| Weight | Approx. 1.7 kg / 3.75 lb. |
| Mounting Bracket | 3202078/68 + 3201079/00 (Ordered Separately) |
| Alternate Mounting Bracket | 0900912/00, 0302032/68, or 0300064/00 + U-Bolts to match mounting pipe diameter (Ordered Separately) |
RADIATION PATTERNS

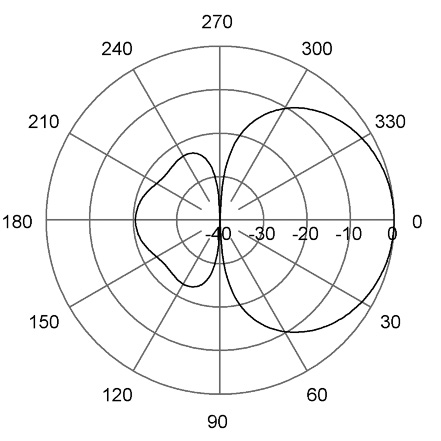

E-Plane | 345 MHz
RADIATION PATTERNS

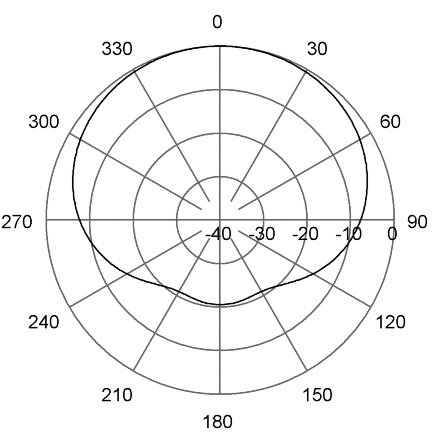

H-Plane | 345 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

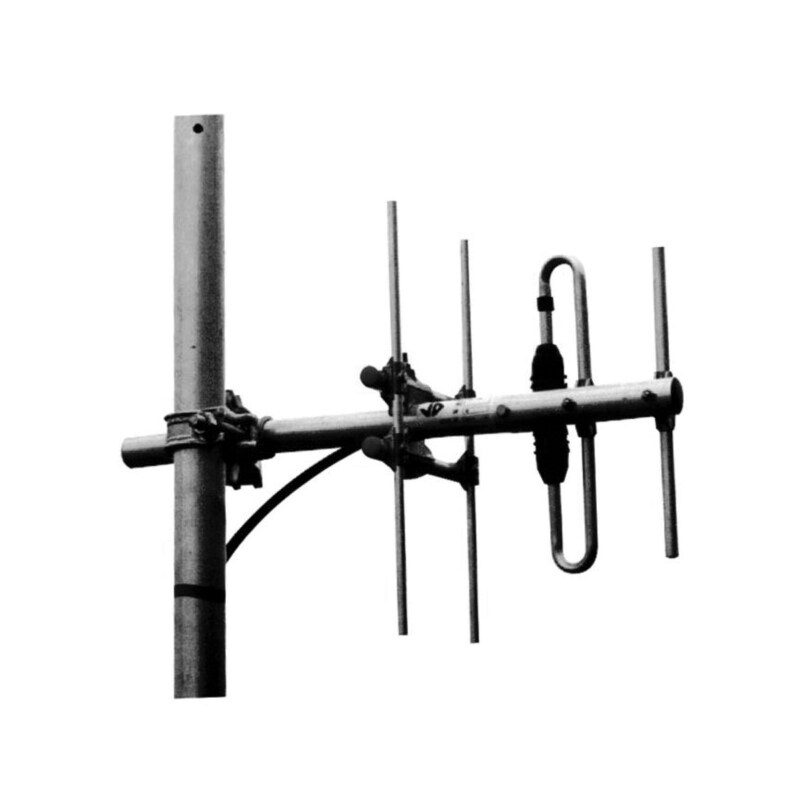

| 3 element Yagi 330 – 360 MHz | 7040345 |
