| Electrical | |
| Frequency | 380 – 400 MHz |
|---|---|
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 46 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 56 ° |
| Impedance | 50 Ω |
| Gain | 9.5 dBd (11.7 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 20 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| 1st Sidelobe level | -25 dB |
| Environmental | |
| Operating temperature range | -40 °C to +65 °C |
|---|---|
| Ingress Protection | IP68 |
| Mechanical | |
| Connection(s) | N(f) on 1.3m RG213/U cable (including splitter) |
|---|---|
| Materials | Boom, 32 mm dia. aluminium elements, 12.7 mm dia. aluminium balun, fully moulded enclosure |
| Historic Brand | Amphenol Procom |
| Dimensions | 750 x 600 x 480 mm / 29.5 x 23.6 x 18.9 in. |
| Wind Load | 129 N (160 km/h) |
| Weight | Approx. 4.4 kg / 9.7 lb. |
| Mounting Bracket | Included for 32 – 50 mm mast |
| Balun Encapsulant | Polyurethane Resin U-600 |
This product doesn’t have any diagrams yet.
| Model | Product No. | Frequency | Add To Quote |
|---|---|---|---|
|

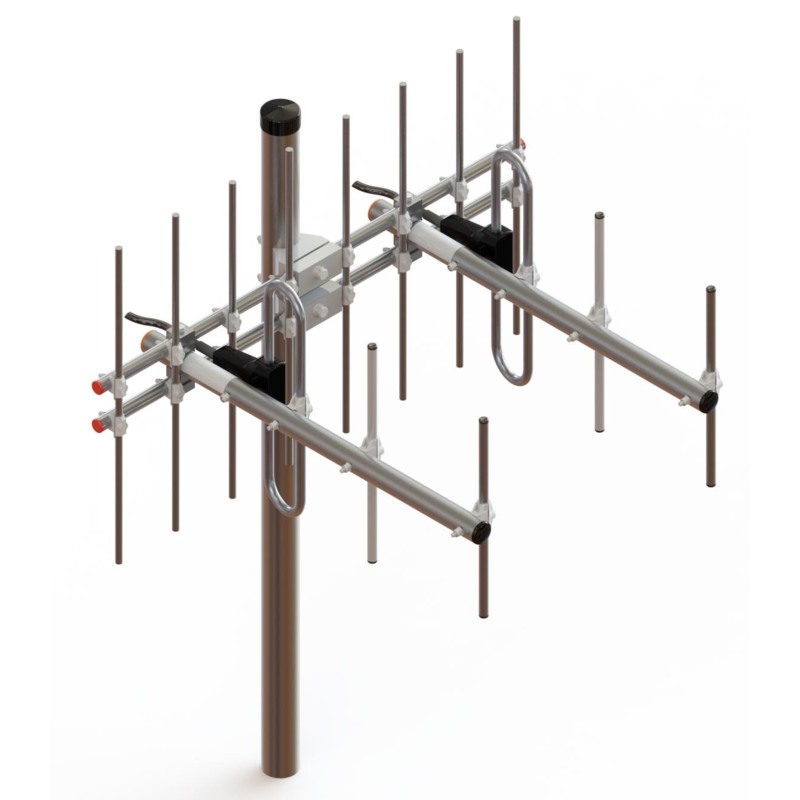

Double Yagi antenna, rotator mount |
7041385-CM2-R | 380 – 400 MHz |
