7041440-2H120

H-POL 120° Sector Yagi array, 440 – 470 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7041440-2H120
Electrical
Frequency 440 – 470 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane 120 °
Polarisation Horizontal
3 dB Beamwidth, E-Plane 28 °
Impedance 50 Ω
Gain 5 dBd (7.2 dBi)
VSWR < 1.5:1
Front-To-Back Ratio > 17 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) N(f) on 1m RG213/U cable (splitter output)
Materials Main boom, 63mm dia. aluminium tube
Antenna boom, 32 mm dia. aluminium
elements, 12.7 mm dia. aluminium
balun, Fully moulded enclosure
Dimensions Yagi Dimensions; 307 x 402 x 836mm
Boom height; 1000mm
Weight Approx. 7 kg / 15.4 lb.

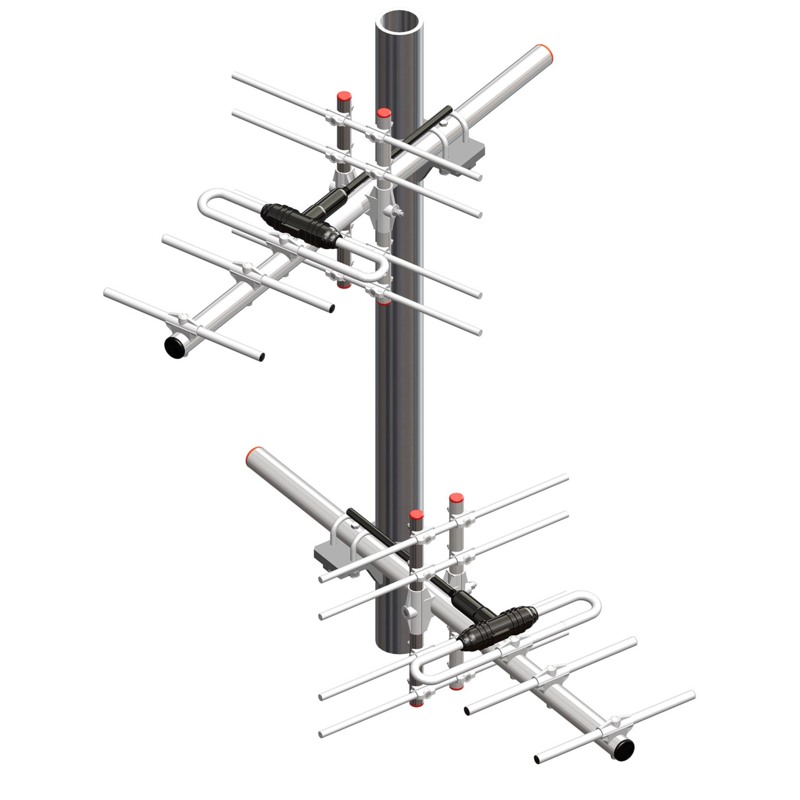

  • A horizontally-polarised 4-element UHF Yagi antenna array for telemetry applications.
  • The 7041440-2H120 antenna allows sectorisation of horizontal polarisation omni sties.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
H-POL 120° Sector Yagi array, 440 – 470 MHz 7041440-2H120

Login required

You need to be logged in into your account to view downloadable documents.

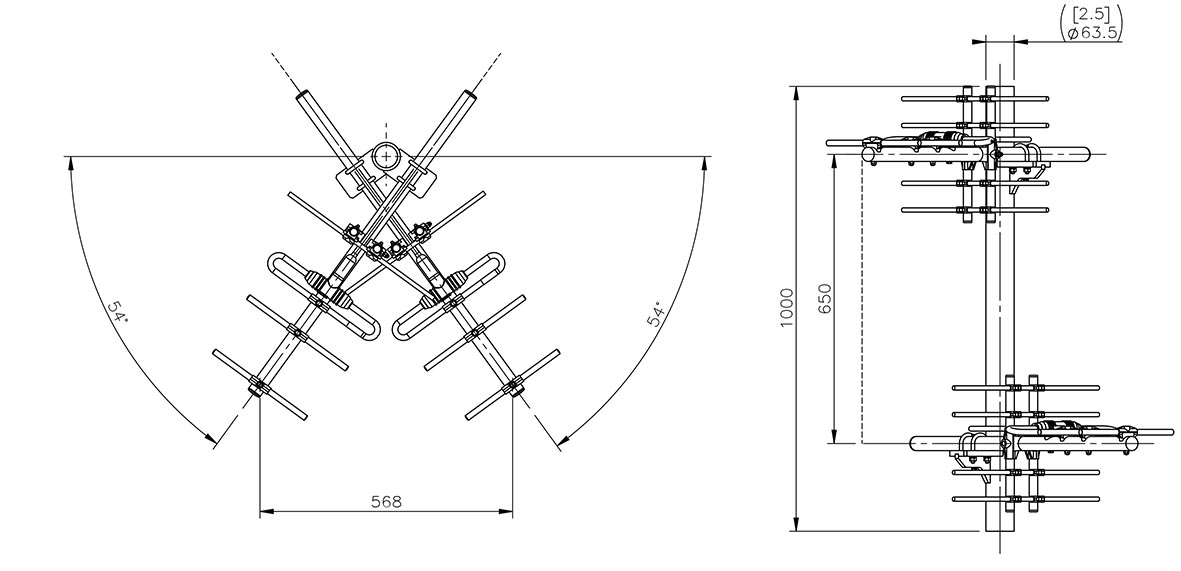

Dimensions

7041440 2H120 Dimensions
