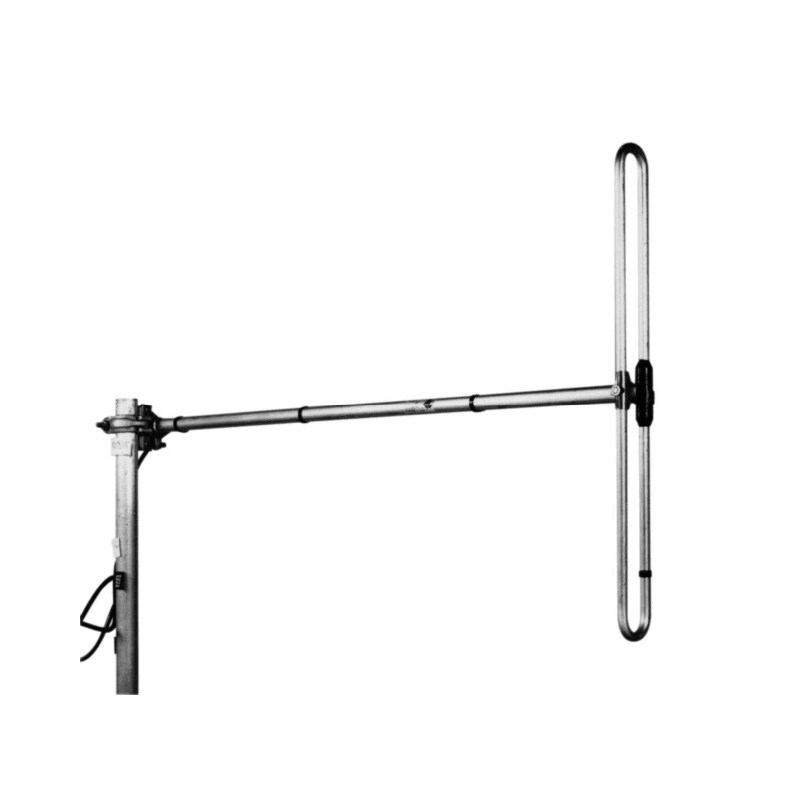

| Electrical | |
| Model | 7050080 |
|---|---|
| Frequency | 72 – 90 MHz |
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | Omni – will depend on mounting distance from mast. |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 80 ° |
| Impedance | 50 Ω |
| Gain | 0 dBd (omni – will depend on mounting distance from mast) |
| VSWR | < 1.5:1 |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 32 mm dia. aluminium elements, 19.1 mm dia. aluminium balun, fully moulded enclosure |
| Historic Brand | Jaybeam |
| Dimensions | 1370 x 1650 x110 / 53.94 x 64.96 x 4.33 in. |
| Wind Load | 160 N (160 km/h) |
| Weight | Approx. 2.5 kg / 5.51 lb. |
| Mounting Bracket | 3202078/68 + 3201079/00 (Ordered Separately) |
| Alternate Mounting Bracket | 0900912/00, 0302032/68, or 0300064/00 + U-Bolts to match mounting pipe diameter (Ordered Separately) |

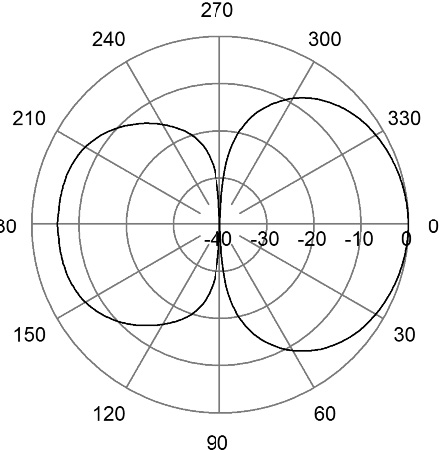

RADIATION PATTERNS
E-Plane | 81 MHz

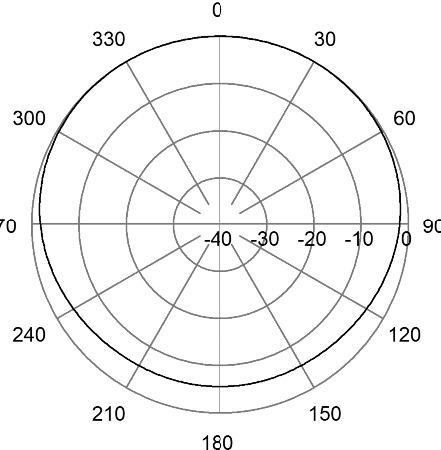

RADIATION PATTERNS
H-Plane | 81 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| Centre fed dipole 72 – 90 MHz | 7050080 |
