| Electrical | |
| Model | 7073142 |
|---|---|
| Frequency | 140 – 146 MHz |
| Max. Input Power | 200 W |
| 3 dB Beamwidth, H-Plane | Omnidirectional |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 18° ±1° |
| Impedance | 50 Ω |
| Gain | 5.5 dBd (7.7 dBi) |
| VSWR | < 1.5:1 |
| Environmental | |
| Operating temperature range | -50 °C to +55 °C |
|---|---|
| Ingress Protection | IP56 |
| Mechanical | |
| Connection(s) | N(f) |
|---|---|
| Materials | Antenna Base : Aluminium Shroud : GRP tube, tapered Radiating element : Brass |
| Mounting Section | Aluminium tube 48.4 mm dia. |
| Historic Brand | Jaybeam |
| Dimensions | 5180 (l) x 53 (dia.) mm / 203.94 (l) x 2.09 (dia.) in. |
| Wind Load | 260 N (160 km/h) |
| Weight | Approx. 6.5 kg / 14.33 lb. |
| Mounting Bracket | 2141.01.00.00 (up to 120 mm dia.) (Ordered Separately) ETC-250 (50 to 76 mm dia.) (Ordered Separately) |

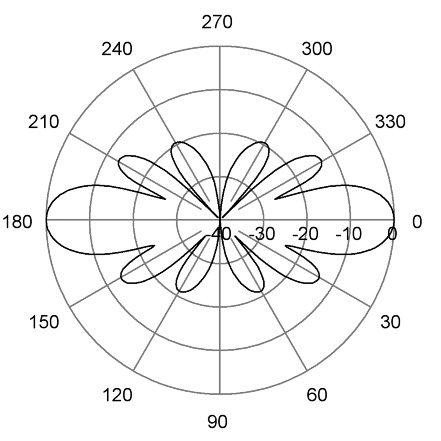

RADIATION PATTERNS
E-Plane | 143 MHz
RADIATION PATTERNS
H-Plane | 143 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| 5.5dBd colinear 140 – 146 MHz | 7073142 |
