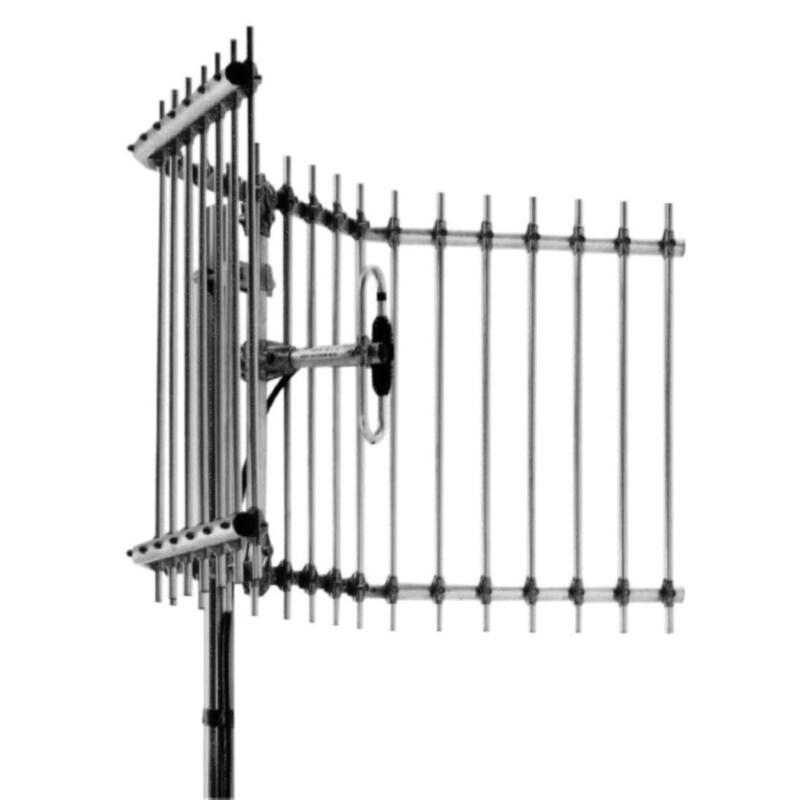

| Electrical | |
| Frequency | 400 – 470 MHz |
|---|---|
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 41 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 56 ° |
| Impedance | 50 Ω |
| Gain | 9.5 dBd (11.7 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 25 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 32 mm dia. aluminium elements, 12.7 mm dia. aluminium balun, Fully moulded enclosure |
| Historic Brand | Jaybeam |
| Dimensions | 1500 x 700 x 600 mm |
| Wind Load | 510 N (160km/h) |
| Weight | 16.5 kg / 36.38 lb |
| Mounting Bracket | 0300120/00 (Ordered Separately) |
RADIATION PATTERNS

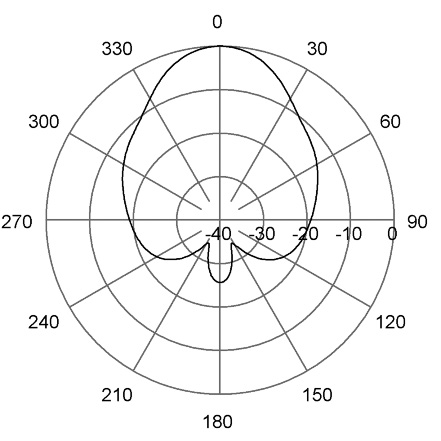

H-Plane | 435 MHz
RADIATION PATTERNS

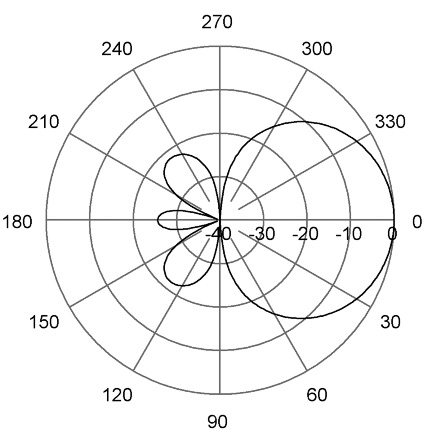

E-Plane | 435 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| Corner reflector 400-470 MHz | 7129400 |
