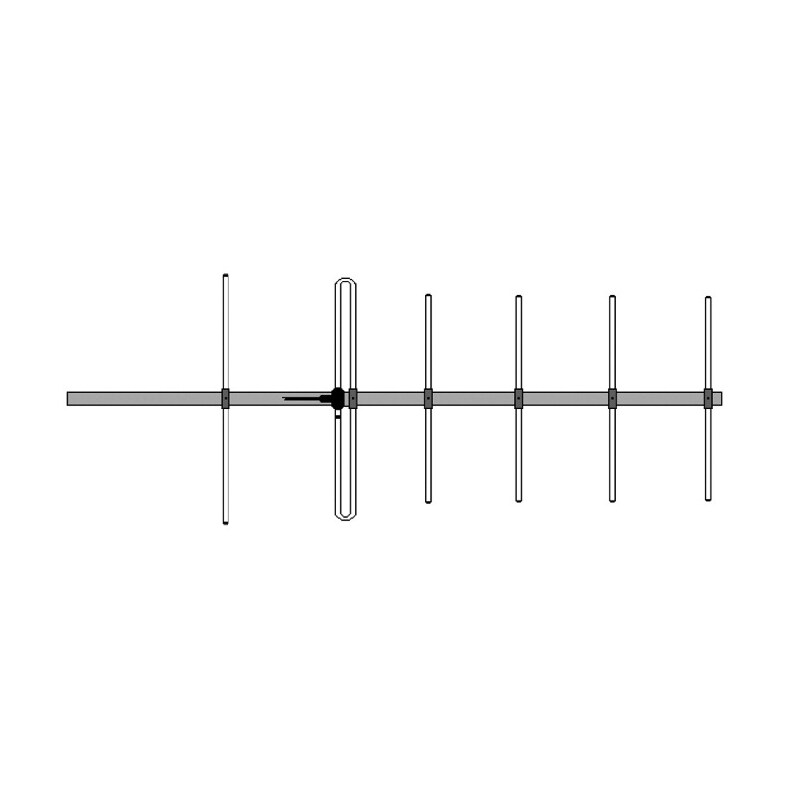

| Electrical | |
| Model | 7130088 |
|---|---|
| Frequency | 88 – 108 MHz |
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 64 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 56 ° |
| Impedance | 50 Ω |
| Gain | 8.5 dBd (10.7 dBi) |
| VSWR | < 1.5:1 typical < 2.0:1 maximum (band edges) |
| Front-To-Back Ratio | > 17 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 38 mm dia., aluminium elements, 19.1 mm dia., aluminium balun, fully moulded enclosure |
| Historic Brand | Jaybeam |
| Dimensions | 4000 x 1730 x 1200 mm / 157.48 x 68.11 x 47.24 in. |
| Wind Load | 410 N (160 km/h) |
| Weight | Approx. 10.7 kg / 23.59 lb. |
| Mounting Bracket | 3202078/68 + 3201079/00 (Ordered Separately) |
| Alternate Mounting Bracket | 0300064/00 + U-bolts to match mounting pipe diameter (Ordered Separately) |
RADIATION PATTERNS

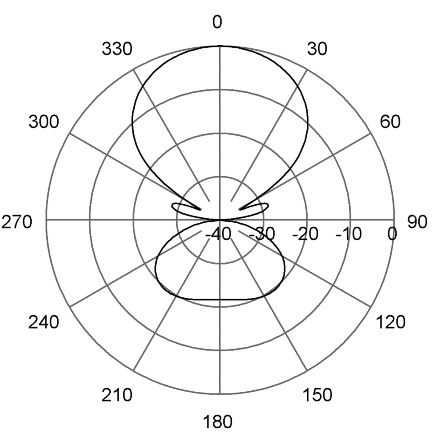

E-Plane | 98 MHz
RADIATION PATTERNS

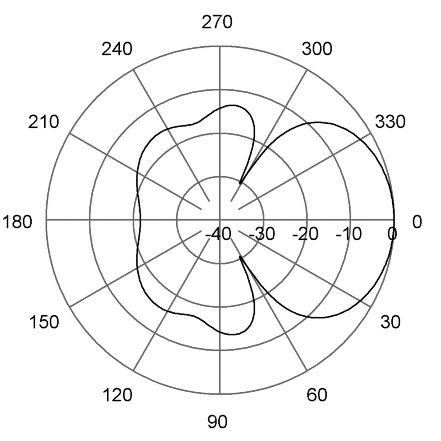

H-Plane | 98 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| 6 element Yagi 88 – 108 MHz | 7130088 |
