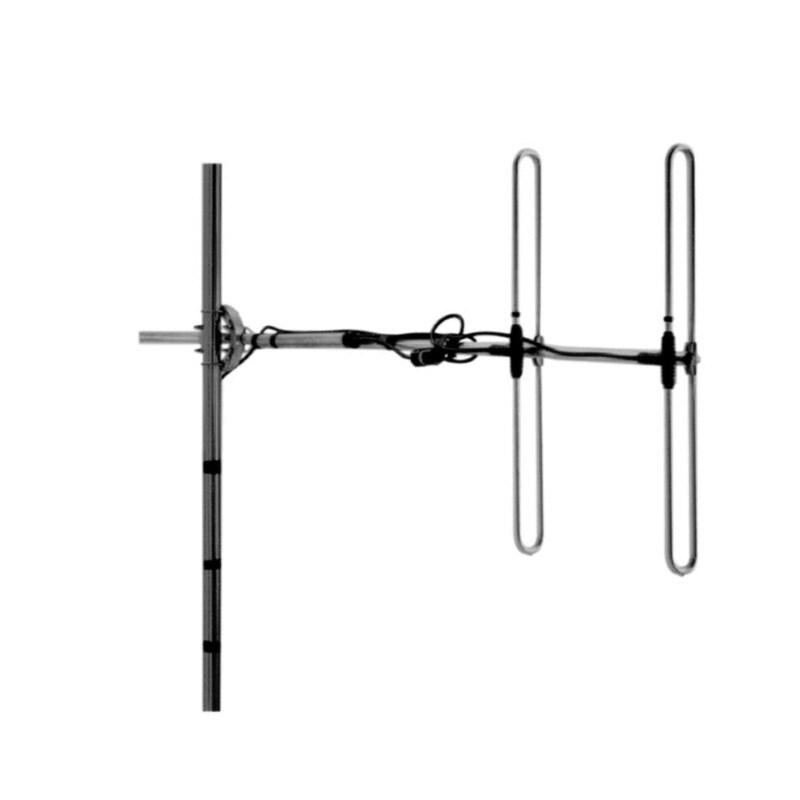

| Electrical | |
| Frequency | 156 – 163 MHz |
|---|---|
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 180 ° |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 75 ° |
| Impedance | 50 Ω |
| Gain | 2.8 dBd (5 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 20 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 32 mm dia. aluminium elements, 19.1 mm dia. aluminium balun, fully moulded enclosure |
| Historic Brand | Jaybeam |
| Dimensions | 2000 x 850 x 110mm (L x H x D) |
| Wind Load | 183 N (160km/h) |
| Weight | 5.2 kg / 11.46 lb |
| Mounting Bracket | 3202078/68 + 0900174/00 (Ordered Separately) |
| Alternate Mounting Bracket | 0900912/00, 0302032/68, or 0300064/00 + U-Bolts to match mounting pipe diameter (Ordered Separately) |
RADIATION PATTERNS

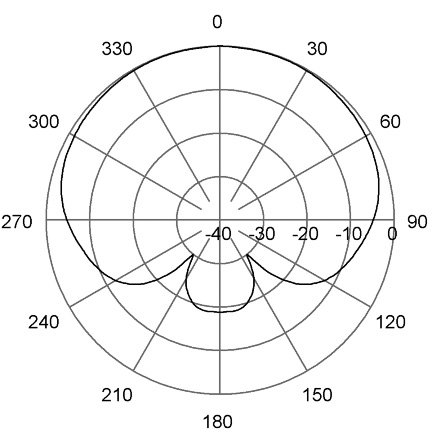

H-Plane | 160 MHz
RADIATION PATTERNS

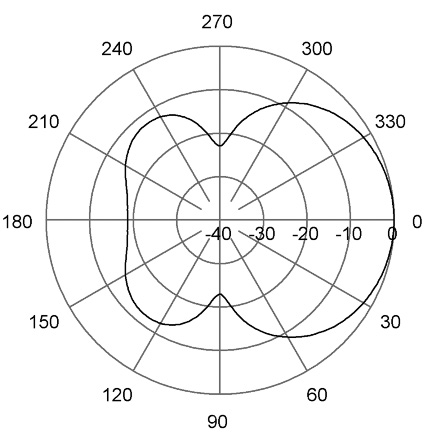

E-Plane | 160 MHz
| Model | Product No. | Add To Quote |
|---|---|---|
| Cardioid array 156-163 MHz | 7170160 |
