| Electrical | |
| Frequency | 720 – 790 MHz |
|---|---|
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 25 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 23 ° |
| Impedance | 50 Ω |
| Gain | 14.4 dBd (16.6 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 20 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| In iBwave | Yes |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 25 mm dia., aluminium Elements, 10 mm dia., aluminium balun, ‘Parabeam’ slot radiator |
| Length | 2350 mm / 92.52 in. |
| Historic Brand | Jaybeam |
| Wind Load | 160 N (160km/h) |
| Weight | 3.1 kg / 6.83 lb |
| Mounting Bracket | 3202078/68 + 0900174/00 (Ordered Separately) |
| Alternate Mounting Bracket | 3202063/68 + 0900174/00 or 3202032/68 + 0900174/00 (Ordered Separately) |
RADIATION PATTERNS
H-Plane | 755 MHz
RADIATION PATTERNS
E-Plane | 755 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

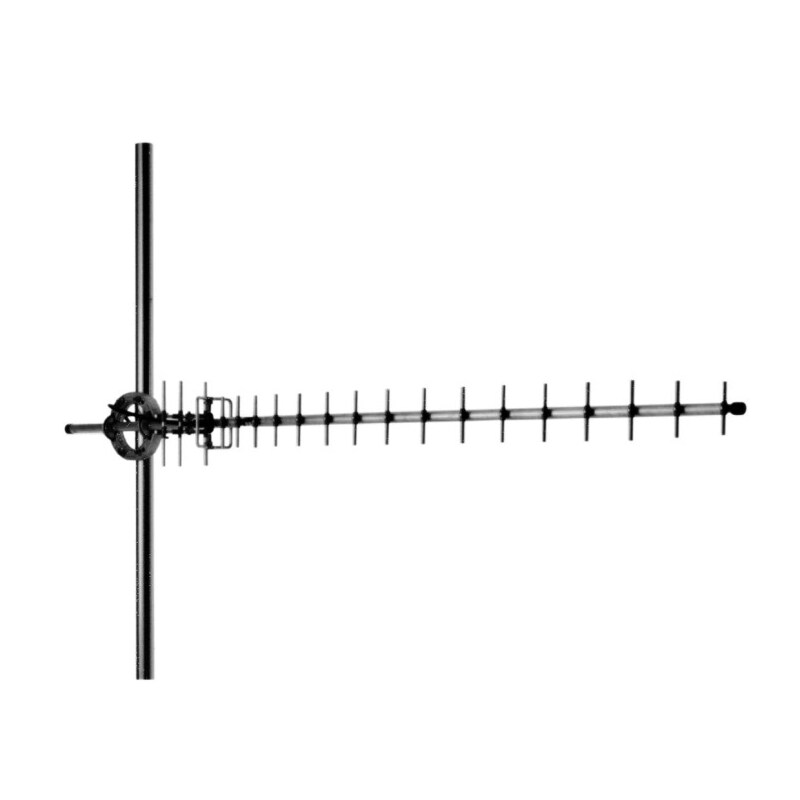

| 18 element Yagi 720-790 MHz | 7176755 |
