| Electrical | |
| Model | 7210128 |
|---|---|
| Frequency | 122.6 – 134.4 MHz |
| Max. Input Power | 300 W |
| 3 dB Beamwidth, H-Plane | 90 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 60 ° |
| Impedance | 50 Ω |
| Gain | 7.5 dBd (9.7 dBi) |
| VSWR | < 1.5:1 |
| Front-To-Back Ratio | > 15 dB |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 48 mm dia., aluminium elements, 19.1 mm dia., aluminium balun, epoxy potted, polyester enclosure |
| Length | Approx. 2400 mm / 94.49 in. |
| Historic Brand | Jaybeam |
| Wind Load | 289 N (160 km/h) |
| Weight | Approx. 8.2 kg / 18.08 lb. |
| Mounting Bracket | 0300064/00 + U-bolts to match mounting pipe diameter (Ordered Separately) |
RADIATION PATTERNS

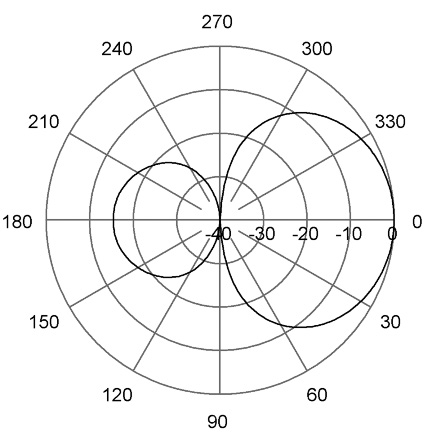

E-Plane | 128 MHz
RADIATION PATTERNS

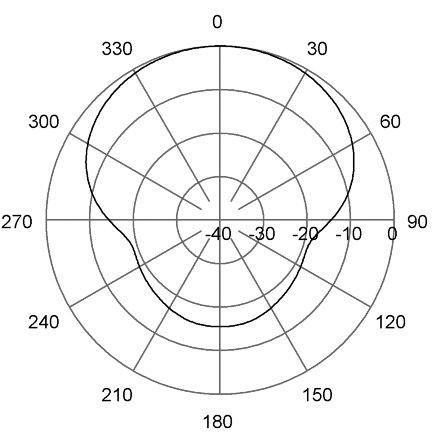

H-Plane | 128 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

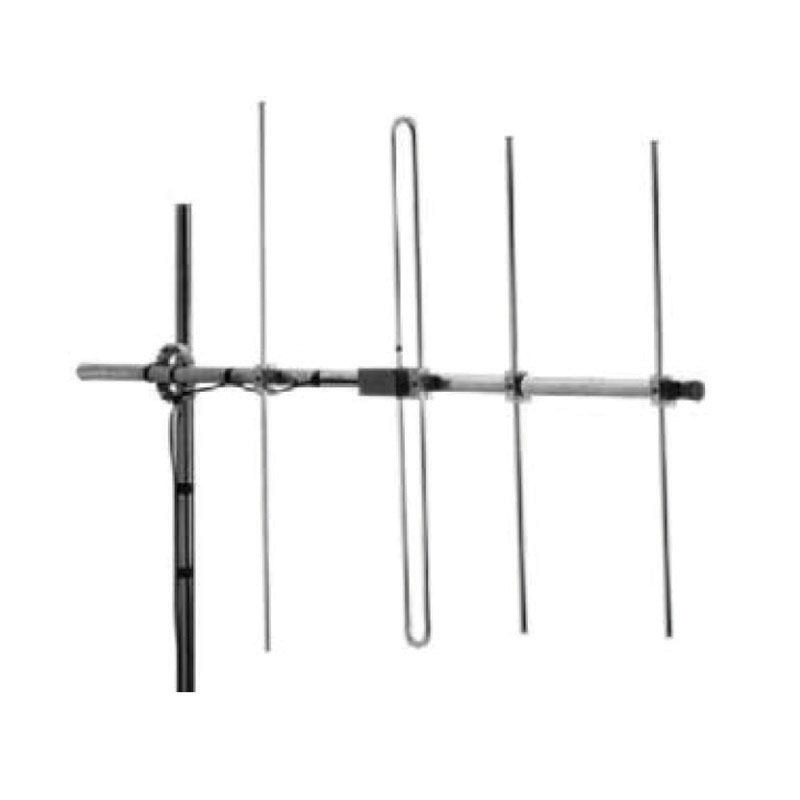

| 4 element HD Yagi 122.6 – 134.4MHz | 7210128 |
