7277010

Discone antenna, 225 – 400 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7277010
Electrical
Model 7277010
Frequency 225 – 400 MHz
Max. Input Power 250 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40°C to +70°C
Survival Wind Speed 200 km/h
Mechanical
Connection(s) N(f) on 3m RG213/U cable
Materials Elements, solid aluminium
Historic Brand Jaybeam
Dimensions Approx. 590 x 730 mm / 23.2 x 28.7 in.
Wind Load 91 N (160 km/h)
Weight Approx. 3 kg / 6.61 lb.
Mounting Bracket 0900964/00
(Ordered Separately)
Alternate Mounting Bracket 0300066/00
(Ordered Separately)
  • A rugged and durable Wideband Discone antenna for UHF AIR BAND applications.
  • This design provides low VSWR and stable pattern performance over a wide operating bandwidth.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Former Jaybeam brand product.

RADIATION PATTERNS

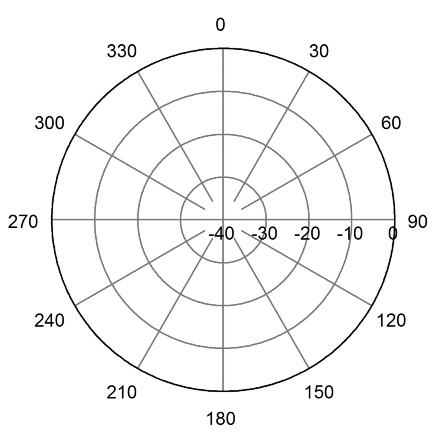

H-Plane | 312 MHz

H-Plane | 312 MHz

RADIATION PATTERNS

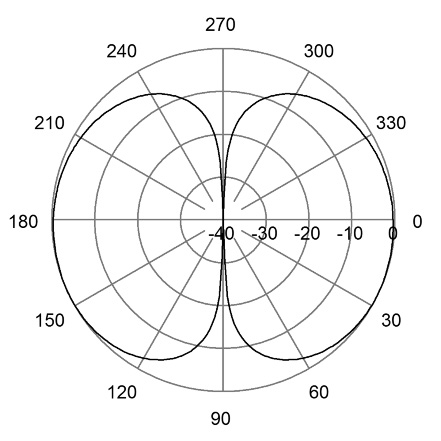

E-Plane | 312 MHz

E-Plane | 312 MHz

Model Product No. Add To Quote
Discone antenna, 225 – 400 MHz 7277010
