| Electrical | |
| Model | 7323164 |
|---|---|
| Frequency | 151 – 181 MHz |
| Max. Input Power | 300 W |
| 3 dB Beamwidth, H-Plane | Will depend on mounting distance from mast |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 80 ° |
| Impedance | 50 Ω |
| Gain | 0 dBd (omni – will depend on mounting distance from mast) |
| VSWR | < 1.5:1 |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Elements | 19 mm / 38 mm diameter, Aluminium Tube |
|---|---|
| Connection(s) | Various connector & cable options (see ordering options above) |
| Materials | Boom, 48 mm dia., aluminium elements, 19.1 mm dia., aluminium balun, epoxy potted, polyester enclosure |
| Historic Brand | Jaybeam |
| Dimensions | 2000 x 920 x 120 mm / 78.74 x 36.22 x 4.72 in. |
| Wind Load | 171 N (160 km/h) |
| Weight | Approx. 5.9 kg / 13.01 lb. |
| Alternate Mounting Bracket | 0300064/00 + U-bolts to match mounting pipe diameter (Ordered Separately) |
RADIATION PATTERNS

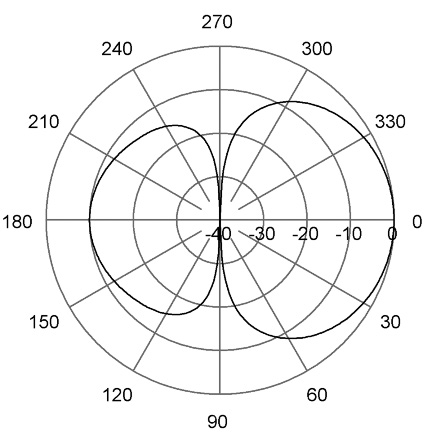

E-Plane | 166 MHz
RADIATION PATTERNS

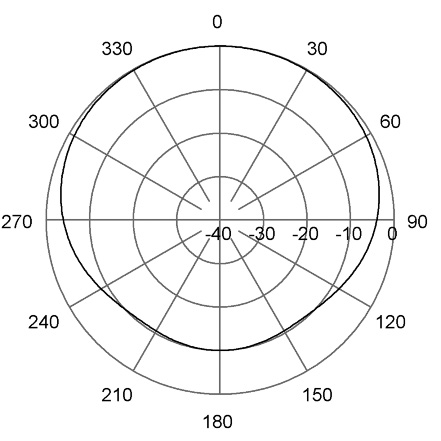

H-Plane | 166 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

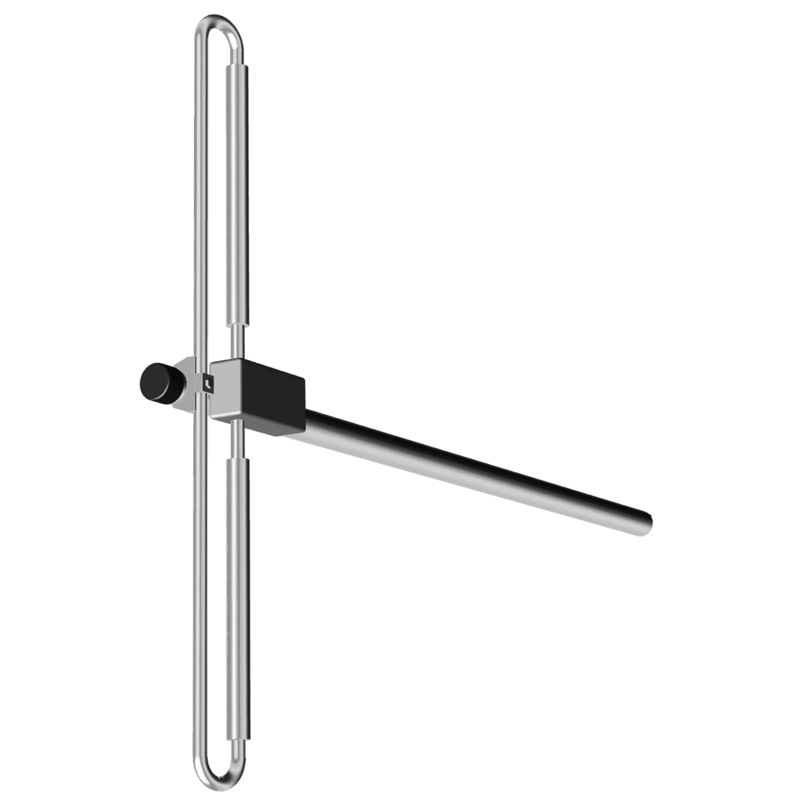

| Heavy duty dipole 151 – 181 MHz | 7323164 |
