| Electrical | |
| Model | 7356825 |
|---|---|
| Frequency | 685-855 MHz (Channels 47-68) |
| Max. Input Power | 150 W |
| 3 dB Beamwidth, H-Plane | 25 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 23 ° |
| Impedance | 50 Ω |
| Gain | 14.4 dBd (16.5 dBi) |
| VSWR | < 2.0:1 |
| Front-To-Back Ratio | 20 dB typ. |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Boom, 25 mm dia., aluminium Elements, 10 mm dia., aluminium balun, ‘Parabeam’ slot radiator |
| Length | Approx. 2380 mm / 93.70 in. |
| Historic Brand | Jaybeam |
| Wind Load | 196 N (160 km/h) |
| Weight | Approx. 4.5 kg / 9.92 lb. |
| Mounting Bracket | 0900174/00 + 3202078/68 (Ordered Separately) |
RADIATION PATTERNS
H-Plane | 770 MHz
RADIATION PATTERNS
E-Plane | 770 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

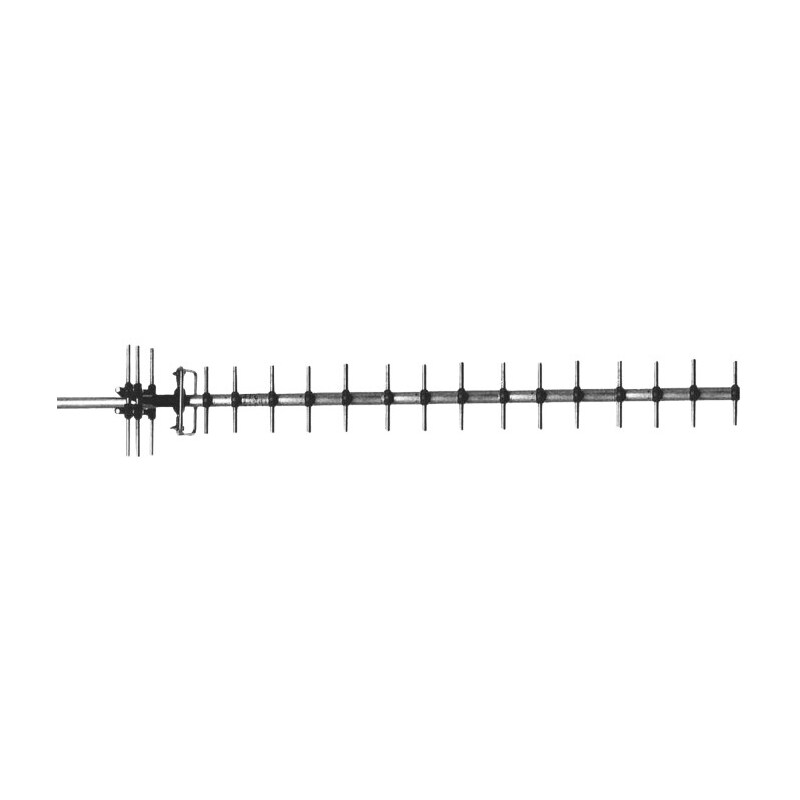

| 18 element par.Yagi 685 – 855 MHz | 7356825 |
