| Electrical | |
| Model | 7409000 |
|---|---|
| Frequency | 88 – 108 MHz |
| Max. Input Power | 2000 W |
| 3 dB Beamwidth, H-Plane | 110 ° |
| Polarisation | Linear (Vertical or Horizontal) |
| 3 dB Beamwidth, E-Plane | 55 ° |
| Impedance | 50 Ω |
| Gain | 5.9 dBd (8 dBi) |
| VSWR | < 1.4:1 |
| Front-To-Back Ratio | 18 dB typical |
| Mechanical | |
| Elements | 3/4″ dia x 2.0 mm thick Aluminium 6082 T6 |
|---|---|
| Connection(s) | 7/16 DIN(f) |
| Radiator Feed | PTFE dielectric coaxial cable |
| Boom Material | 1 29/32″ dia. x 4.47 mm thick Aluminium 6082 T6 |
| Fasteners | Stainless steel grade A2-70 |
| Length | Approx. 3330 mm / 131.10 in. |
| Element Clamps | Extruded machined aluminium |
| Historic Brand | Jaybeam |
| Wind Load | 627 N (160 km/h) |
| Width | Approx. 1810 mm / 71.26 in. |
| Weight | Approx. 16 kg / 35.27 lb. |
| Mounting | Galvanised steel parallel clamps |
| Depth | Approx. 220 mm / 8.66 in. |
RADIATION PATTERNS

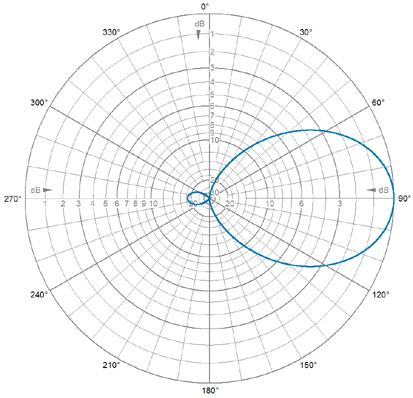

E-Plane | 98 MHz
RADIATION PATTERNS

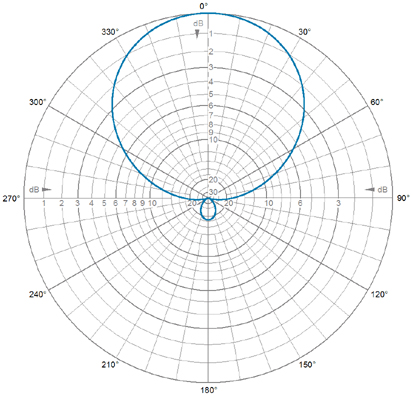

H-Plane | 98 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

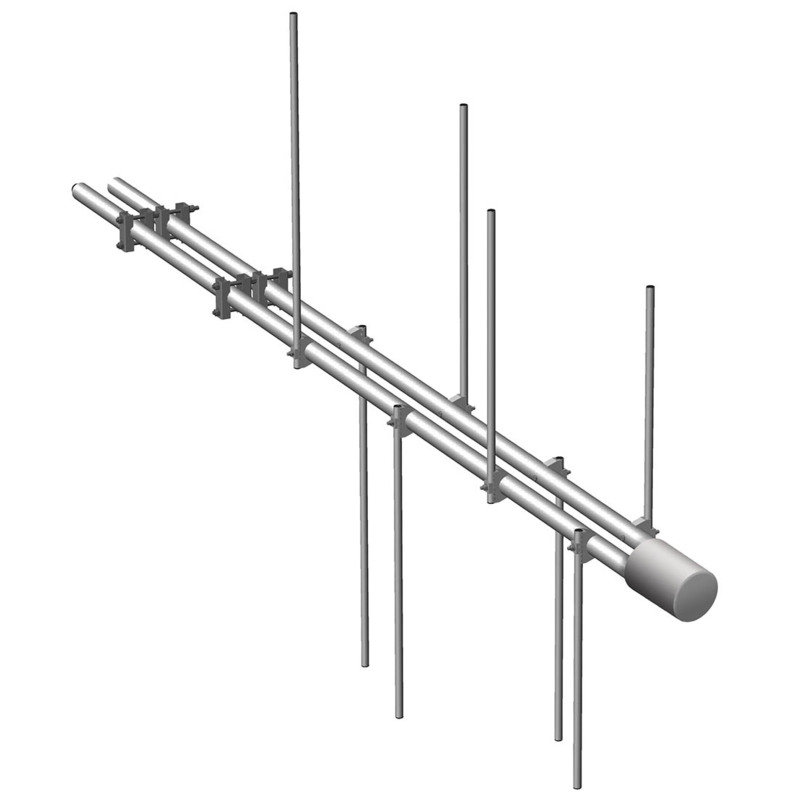

| FM band log-periodic antenna, 2kW | 7409000 |
