| Electrical | |
| Model | 7437010 |
|---|---|
| Frequency | 100 – 500 MHz |
| Max. Input Power | 250 W |
| 3 dB Beamwidth, H-Plane | Omnidirectional |
| Polarisation | Vertical |
| 3 dB Beamwidth, E-Plane | 80 ° |
| Impedance | 50 Ω |
| Gain | 0 dBd (2.2 dBi) |
| VSWR | < 2.7:1 full band, < 2.0:1 typical over air band |
| Antistatic Protection | All metal parts DC-grounded (Connector shows a DC-short) |
| Mechanical | |
| Connection(s) | N(f) on 3m RG213/U cable |
|---|---|
| Materials | Elements, solid aluminium rod Spine, aluminium tube Bracings, aluminium and PVC |
| Historic Brand | Jaybeam |
| Dimensions | 1170 x 1360 mm / 46.06 x 53.54 in. |
| Wind Load | 186 N (160 km/h) |
| Weight | Approx. 5 kg / 11.02 lb. |
| Mounting Bracket | 0900964/00 (Ordered Separately) |
| Alternate Mounting Bracket | 0300064/00 + U-bolts to match mounting pipe diameter (Ordered Separately) |
RADIATION PATTERNS
H-Plane | 300 MHz

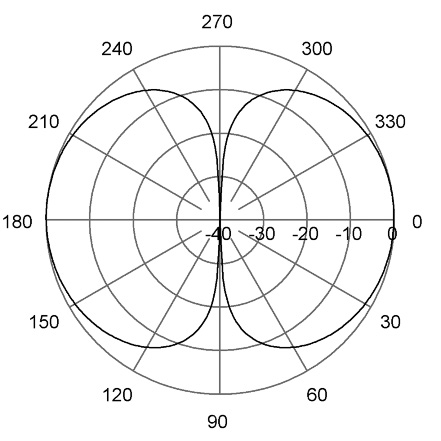

RADIATION PATTERNS
E-Plane | 300 MHz
| Model | Product No. | Add To Quote |
|---|---|---|

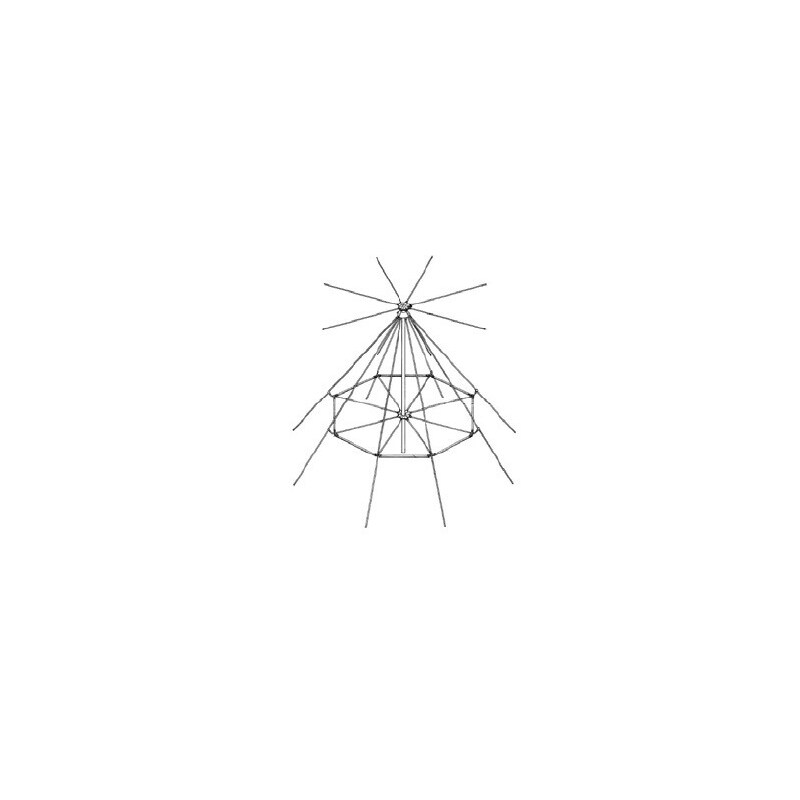

| Discone antenna, 100 – 500 MHz | 7437010 |
