7497385

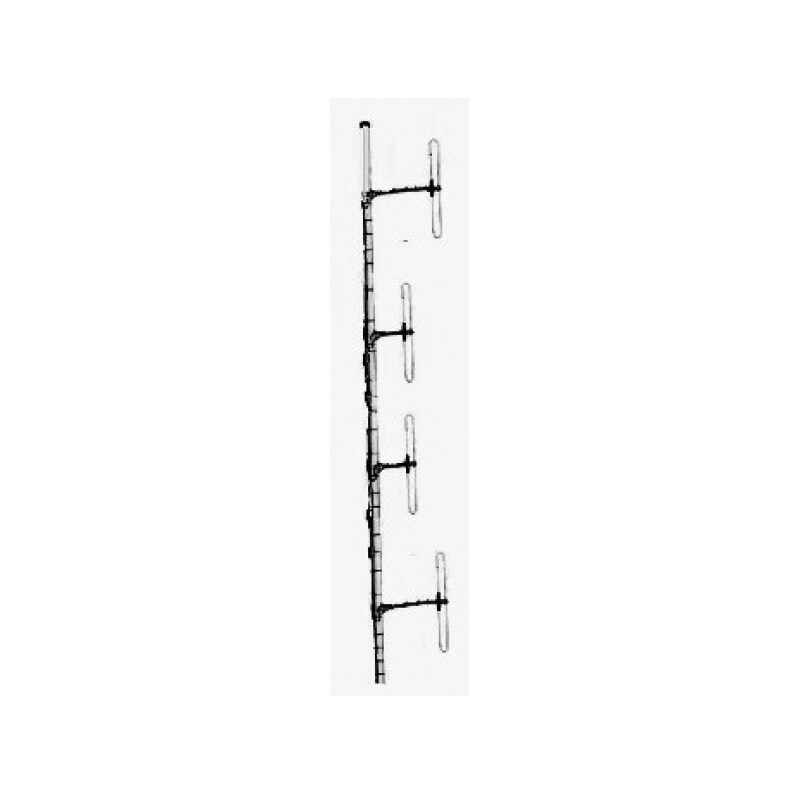

4-stack cardioid array 380-430 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7497385
Electrical
Frequency 380 – 430 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane 160 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 18 °
Impedance 50 Ω
Gain 5.9 dBd (8.1 dBi)
VSWR < 1.5:1
Front-To-Back Ratio > 20 dB
Passive Intermodulation -143dBc (3rd Order, 2 x Tx @ 43dBm)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) 7/16(f) on 3m RG214/U cable
Materials Main Boom, 63.5 mm dia., aluminium
elements, 12.7 mm dia., aluminium
balun, fully potted enclosure
Historic Brand Jaybeam
Dimensions 2650 x 470 x 100 mm / 104.3 x 18.5 x 3.9 in
Wind Load 340 N (160km/h)
Weight 12 kg / 26.46 lb
  • A high gain ‘Cardoid’ pattern 4-stack dipole system. Careful attention to design ensures close control of the horizontal and vertical radiation patterns. Can be an important tool for the TETRA network radio planner who is striving to minimize problematical interference. This version has been uprated for optimum Intermodulation performance.
  • • Former Jaybeam brand product.

RADIATION PATTERNS

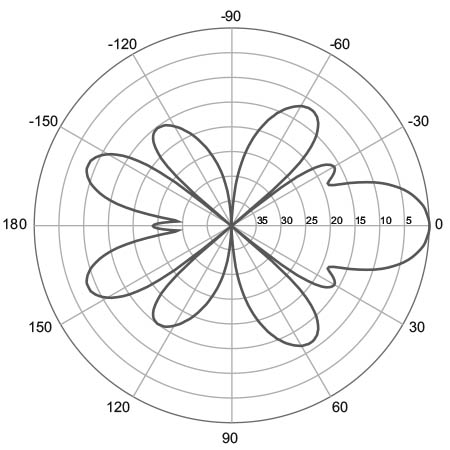

E-Plane | 405 MHz

E-Plane | 405 MHz

RADIATION PATTERNS

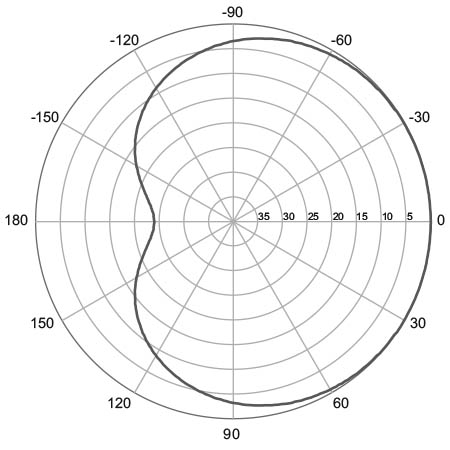

H-Plane | 405 MHz

H-Plane | 405 MHz

Model Product No. Add To Quote
4-stack cardioid array 380-430 MHz 7497385
