End fed dipole 139 – 156 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7500148
Electrical
Model 7500148
Frequency 139 – 156 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) N(f) on 500mm RG213/U cable
Materials Base : Aluminium
Shroud : GRP tube
Length Approx. 1570 mm / 61.81 in.
Historic Brand Jaybeam
Wind Load 42 N (160 km/h)
Weight Approx. 1.2 kg / 2.65 lb.
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe or horizontal rail

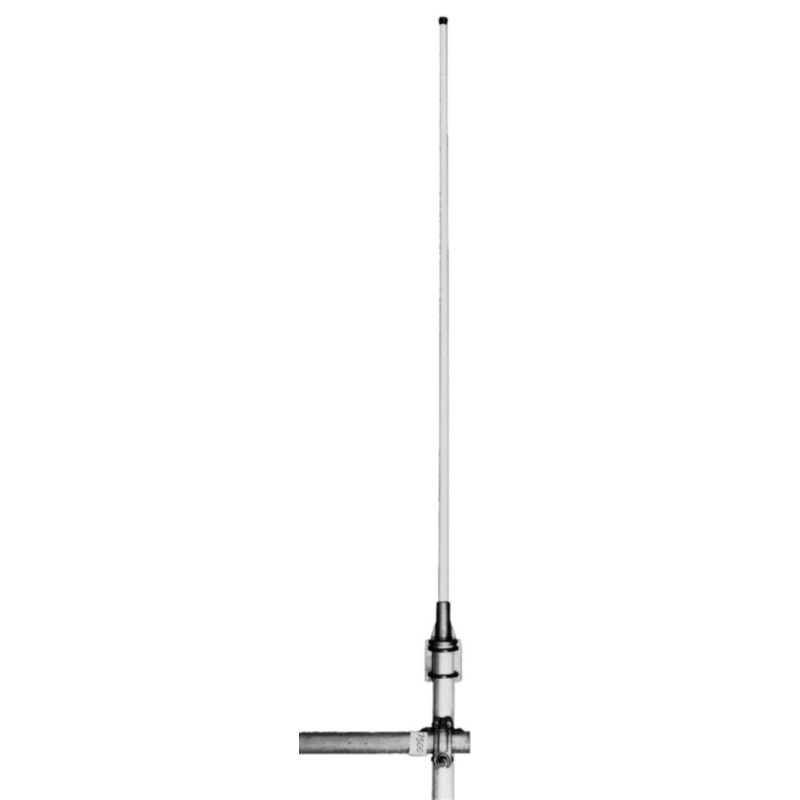

  • A rugged and durable VHF End Fed Dipole antenna housed inside a high-strength, glassfibre shroud.
  • An integrated mounting clamp allows easy installation on poles or horizontal rails.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Former Jaybeam brand product.

RADIATION PATTERNS

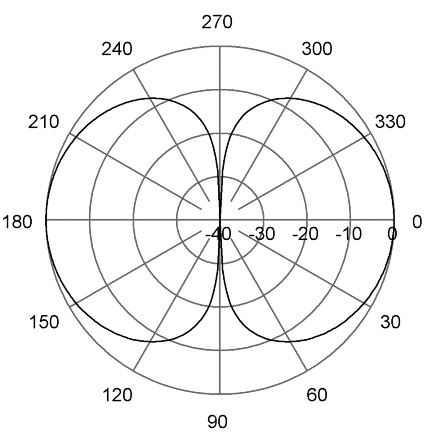

E-Plane | 148 MHz

E-Plane | 148 MHz

RADIATION PATTERNS

H-Plane | 148 MHz

H-Plane | 148 MHz
