End fed dipole 325-355MHz

Find Out More
Data Sheet
CE Certification

Other Files

7501340
Electrical
Frequency 325 – 355 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40°C to +70°C
Mechanical
Connection(s) N(f) on 500mm RG213/U cable
Materials Base: Aluminium
Shroud: GRP tube
Length 1460 mm / 57.48 in.
Historic Brand Jaybeam
Wind Load 35 N (160km/h)
Weight 1 kg / 2.20 lb
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe or horizontal rail

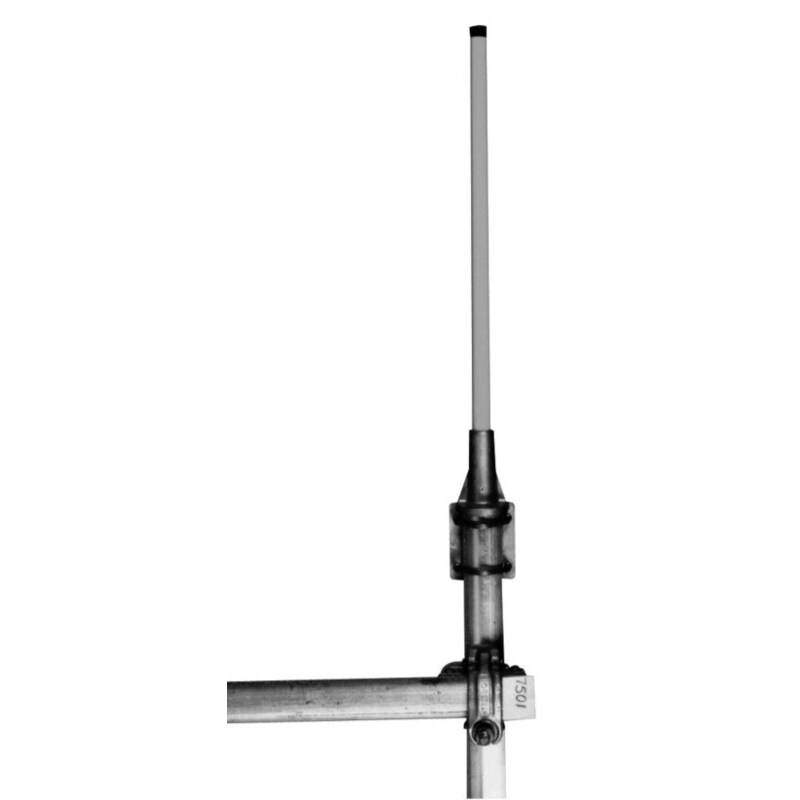

  • A UHF End Fed Dipole antenna designed for PMR / TETRA networks. The antenna is housed inside a high-strength, glassfibre shroud and contains an integrated mounting clamp for easy installation to poles or horizontal rails. Produced to the highest quality standards, these robust antenna designs will provide years of reliable operation.
  • • Former Jaybeam brand product.

RADIATION PATTERNS

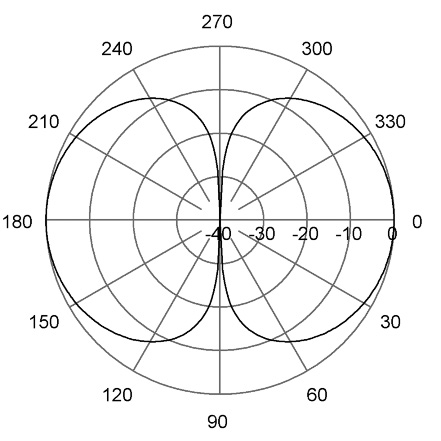

E-Plane | 340 MHz

E-Plane | 340 MHz

RADIATION PATTERNS

H-Plane | 340 MHz

H-Plane | 340 MHz

Model Product No. Add To Quote
End fed dipole 325-355MHz 7501340
