7501380

End fed dipole 380 – 430 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7501380
Electrical
Model 7501380
Frequency 380 – 430 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
In iBwave Yes
Environmental
Operating temperature range -40 °C to +70 °C
Mechanical
Connection(s) N(f) on 500mm RG213/U cable
Materials Base : Aluminium
Shroud : GRP tube
Length Approx. 605 mm / 23.82 in.
Historic Brand Jaybeam
Wind Load 16 N (160 km/h)
Weight Approx. 0.9 kg / 1.98 lb.
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe or horizontal rail
  • A UHF End Fed Dipole antenna designed for PMR / TETRA networks.

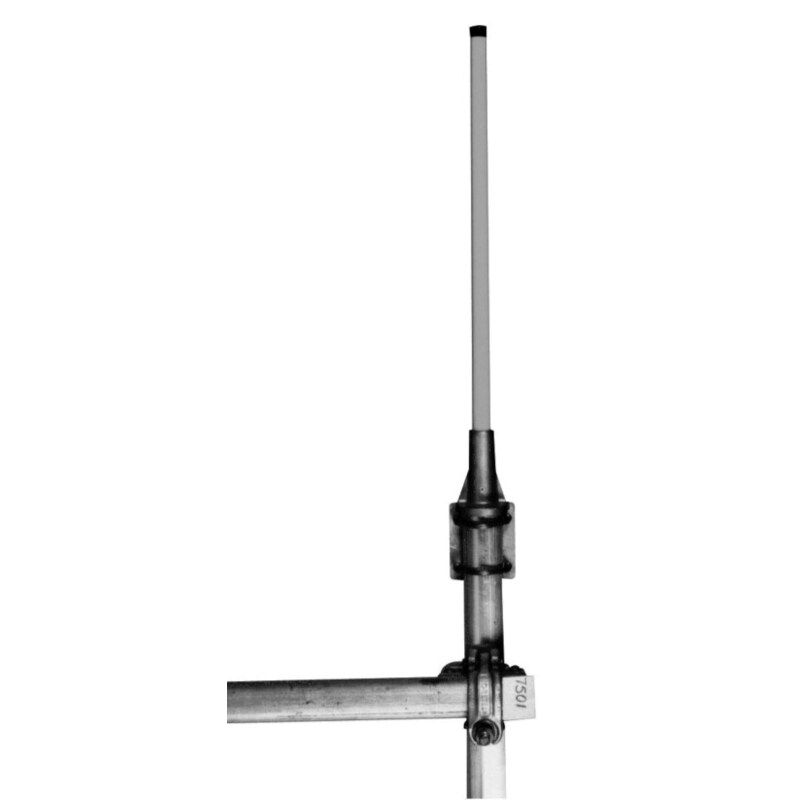

  • The antenna is housed inside a high-strength, glassfibre shroud and contains an integrated mounting clamp for easy installation to poles or horizontal rails.
  • Produced to the highest quality standards, these robust antenna designs will provide years of reliable operation.
  • Former Jaybeam brand product.

RADIATION PATTERNS

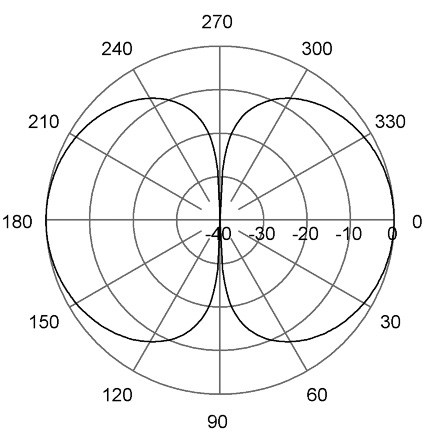

E-Plane | 405 MHz

E-Plane | 405 MHz

RADIATION PATTERNS

H-Plane | 405 MHz

H-Plane | 405 MHz
