7502450

End fed dipole 340 – 512 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7502450
Electrical
Model 7502450
Frequency 340 – 512 MHz
Max. Input Power 500 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 85 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 2.0:1 typical, < 2.3:1 max
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 °C to +70 °C
Survival Wind Speed 220 km/h (no ice) / 190 km/h (20 mm radial ice)
Mechanical
Connection(s) N(f)
Materials Base : Aluminium
Shroud : GRP tube
Length Approx. 1216 mm / 47.87 in.
Historic Brand Jaybeam
Wind Load 150 N (160 km/h)
Weight Approx. 2 kg / 4.41 lb.
Mounting Bracket 0300120/00
(Ordered Separately)

ETC-250 (50 to 76 mm dia.)
(Ordered Separately)
Alternate Mounting Bracket 0300066/00
(Ordered Separately)
  • A Heavy Duty VHF / UHF End Fed Dipole antenna for high power UHF AIR BAND and Trunked Radio applications.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Former Jaybeam brand product.

RADIATION PATTERNS

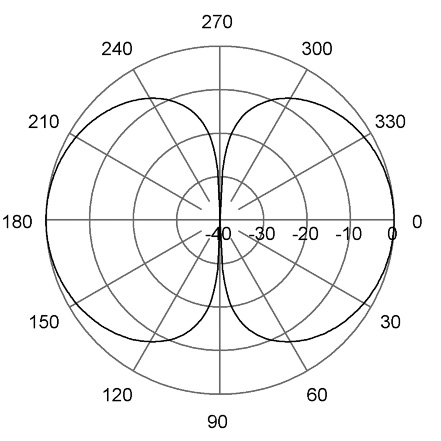

E-Plane | 426 MHz

E-Plane | 426 MHz

RADIATION PATTERNS

H-Plane | 426 MHz

H-Plane | 426 MHz
