End fed dipole 810 – 875 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7511835
Electrical
Model 7511835
Frequency 810 – 875 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 80 °
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) N(f) on 300mm RG213/U cable
Materials Base : Aluminium
Shroud : GRP tube
Length Approx. 250 mm / 9.84 in.
Historic Brand Jaybeam
Wind Load 11 N (160 km/h)
Weight Approx. 0.9 kg / 1.98 lb.
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe or horizontal rail

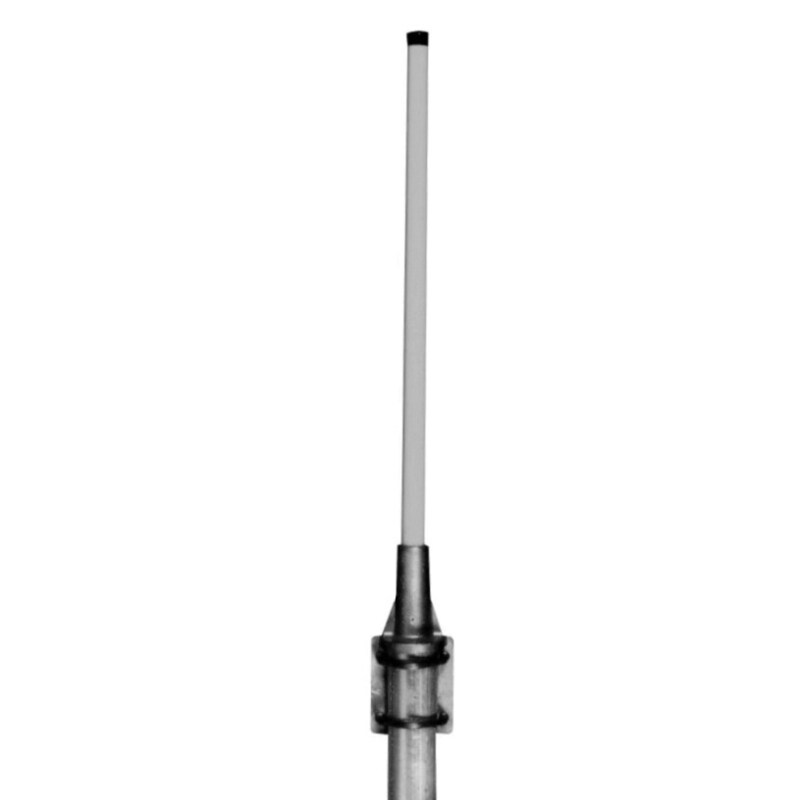

  • A UHF End Fed Dipole antenna housed inside a high-strength, glassfibre shroud.
  • An integrated mounting clamp allows easy installation on poles or horizontal rails.
  • Produced to the highest quality standards, these robust antenna designs will ensure years of reliable operation.
  • Former Jaybeam brand product.

RADIATION PATTERNS

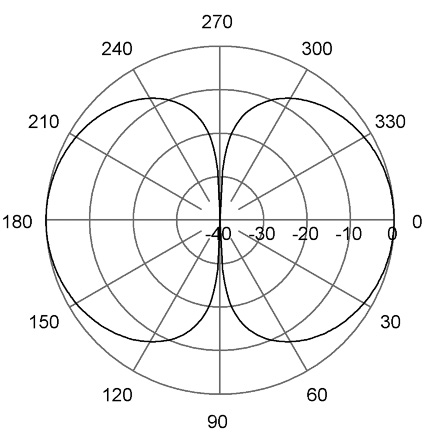

E-Plane | 842 MHz

E-Plane | 842 MHz

RADIATION PATTERNS

H-Plane | 842 MHz

H-Plane | 842 MHz
