752.01.05.00

UHF/TETRA wideband indoor panel antenna 380-470MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

752.01.05.00

Quickly identify the correct ordering code.

752.01.05.00
Electrical
Frequency 380 – 470 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane 130 °
Polarisation Linear (Vertical or Horizontal)
3 dB Beamwidth, E-Plane 120 °
Impedance 50 Ω
Gain 1.9dBd / 4dBi
VSWR < 2.0:1
Front-To-Back Ratio > 8 dB
Passive Intermodulation -140dBc (3rd Order, 2 x Tx@ 37dBm)
Environmental
Operating temperature range -40 to 75 °C
Ingress Protection IP56
Mechanical
Connection(s) N(f) on 500mm RG303 cable
Materials Aluminium, PTFE, ABS, Brass
Radome Material / Colour ABS White Fire Retardant
Historic Brand Skymasts
Dimensions 292 x 292 x 76 mm
Weight 1.1 kg / 2.43 lb

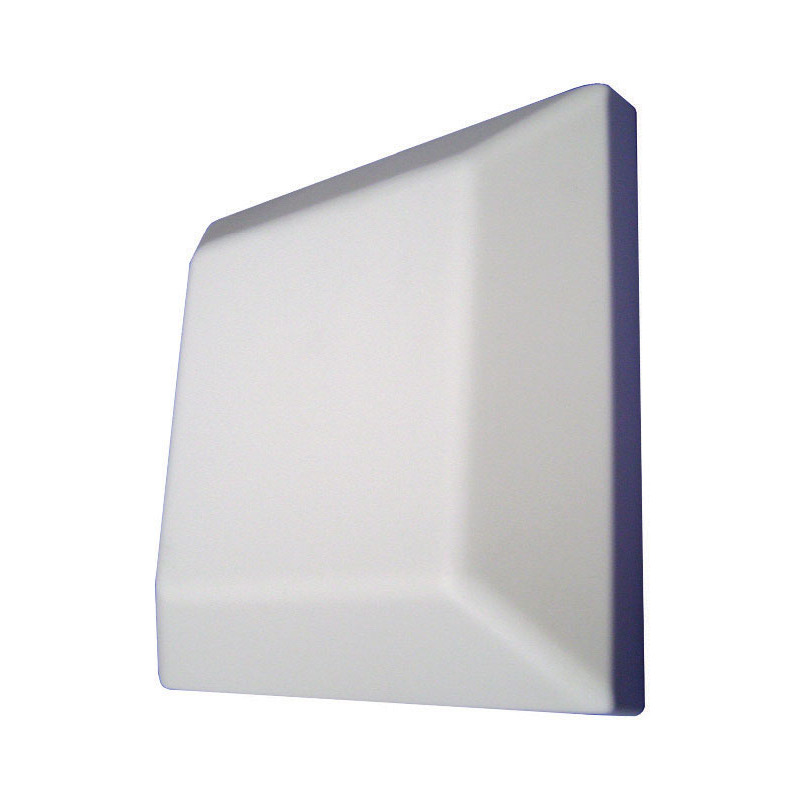

  • The 752.01.05.00 antenna is a broadband panel antenna suitable for indoor or outdoor coverage with TETRA and other UHF repeater systems. The dual patch design gives the antenna stable radiation characteristics over a broad band of frequencies making the antenna ideal for a large range of indoor multichannel UHF repeater networks. This model has undergone S.A.R. testing to EN50385:2002. The antenna is available with a snap-fit wall mounting bracket for easy installation, and can be supplied with connector and cabling options to suit application requirements.
  • • Former Skymasts brand product.

RADIATION PATTERNS

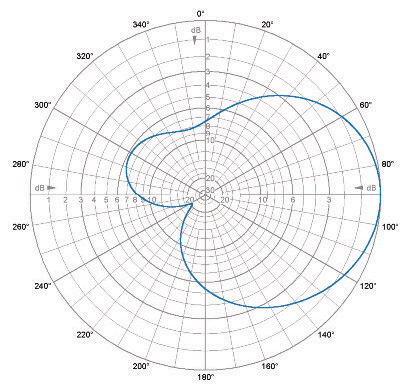

E-Plane | 425 MHz

E-Plane | 425 MHz

RADIATION PATTERNS

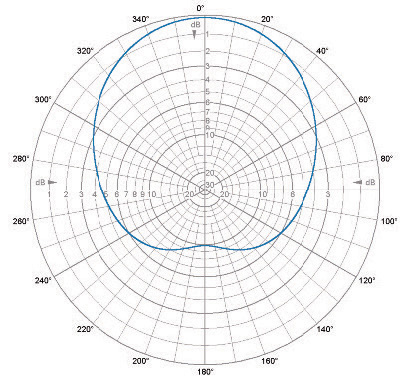

H-Plane | 425 MHz

H-Plane | 425 MHz

Model Product No. FrequencyAdditional Information Add To Quote

UHF/TETRA wideband indoor panel antenna 380-470MHz

 752.01.05.10 380 – 470 MHz Pole mount, 38-60mm

Login required

You need to be logged in into your account to view downloadable documents.

No content found

This product doesn’t have additional information yet.
