752.05.05.00

UHF/TETRA wideband indoor panel antenna 320-380MHz

Find Out More
Data Sheet
CE Certification

Other Files

752.05.05.00
Electrical
Frequency 320 – 380 MHz
Max. Input Power 50 W
3 dB Beamwidth, H-Plane 140 °
Polarisation Vertical
3 dB Beamwidth, E-Plane 130 °
Impedance 50 Ω
Gain 1dBd / 3.2dBi
VSWR < 1.5:1
Front-To-Back Ratio > 6 dB
Passive Intermodulation -153dBc (3rd Order, 2 x Tx @ 37dBm)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 to 70 °C
Ingress Protection IP56
Mechanical
Connection(s) N(f) on 500mm RG213/U cable
Radome Material / Colour ABS White Fire Retardant
Historic Brand Skymasts
Dimensions 292 x 292 x 76 mm (L x W x D)
Weight 1.1 kg / 2.43 lb

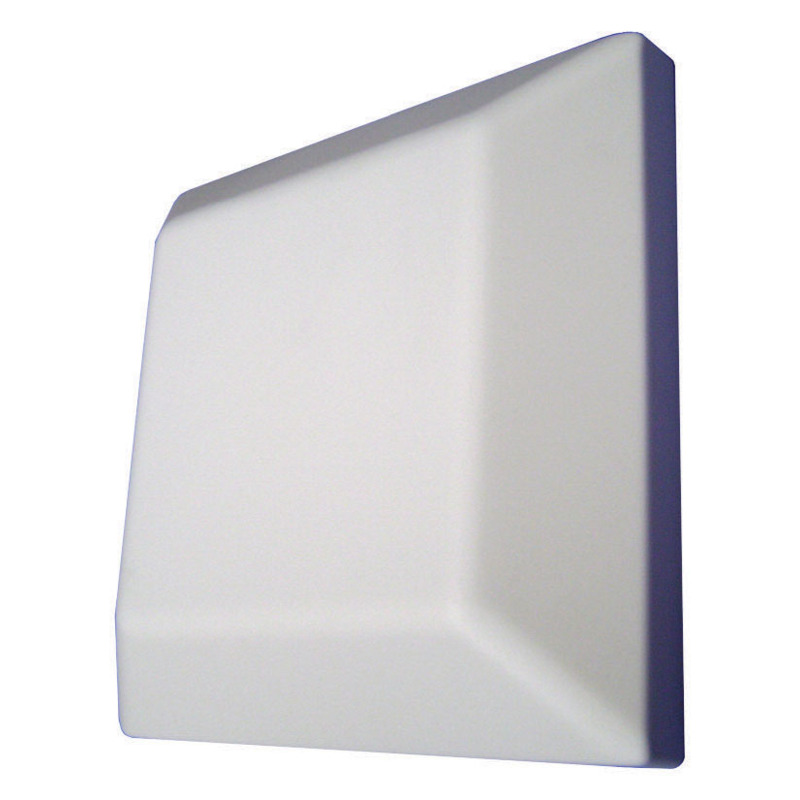

  • The 752.05.05.00 antenna is a broadband panel antenna suitable for indoor or outdoor coverage with UHF repeater systems. The dual patch design gives the antenna stable radiation characteristics over a broad band of frequencies making the antenna ideal for a large range of indoor multichannel UHF repeater networks. The antenna is available with a snap-fit wall mounting bracket for easy installation, and can be supplied with connector and cabling options to suit application requirements.
  • • Former Skymasts brand product.

RADIATION PATTERNS

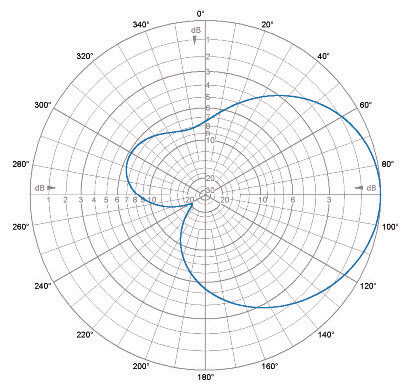

E-Plane | 350 MHz

E-Plane | 350 MHz

RADIATION PATTERNS

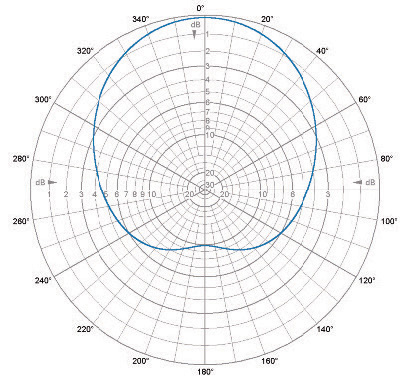

H-Plane | 350 MHz

H-Plane | 350 MHz

Model Product No. Add To Quote
UHF/TETRA wideband indoor panel antenna 320-380MHz 752.05.05.00
