3 dB colinear 430 – 470 MHz

Find Out More
Data Sheet
CE Certification

Other Files

7533000
Electrical
Model 7533000
Frequency 430 – 470 MHz
Max. Input Power 150 W
3 dB Beamwidth, H-Plane Omnidirectional
Polarisation Vertical
3 dB Beamwidth, E-Plane 35 °
Impedance 50 Ω
Gain 3 dBd (5.2 dBi)
VSWR < 1.5:1
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40°C to +70°C
Mechanical
Connection(s) N(f) on 300mm RG213/U cable
Materials Base : Aluminium
Shroud : GRP tube
Length Approx. 1500 mm / 59.06 in.
Historic Brand Jaybeam
Wind Load 35 N (160 km/h)
Weight Approx. 1.5 kg / 3.31 lb.
Mounting Integral mounting clamp to fit 38 – 50 mm dia. pipe or horizontal rail

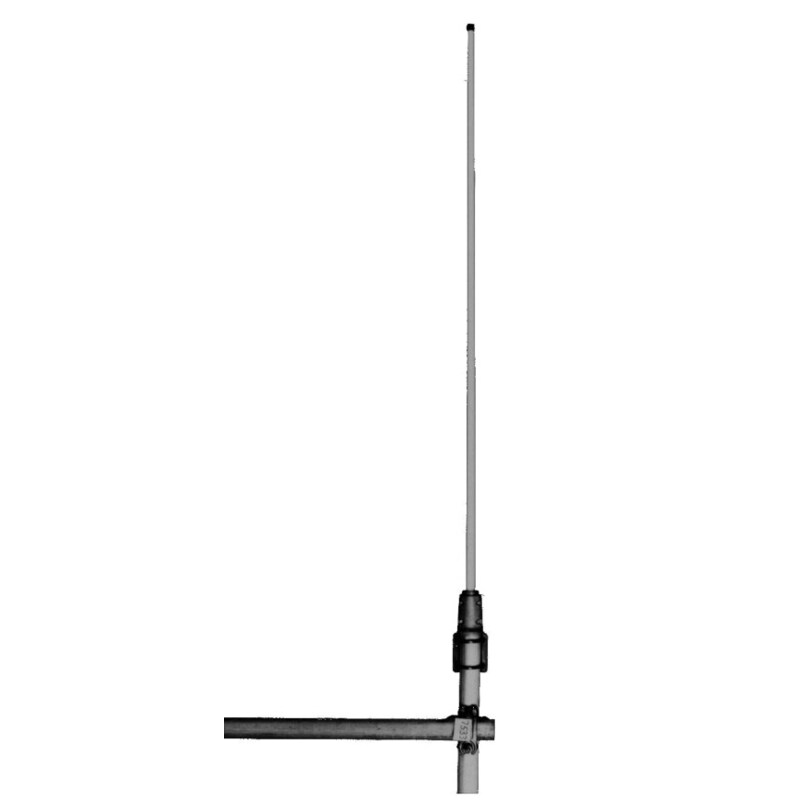

  • A rugged and durable UHF colinear antenna designed for Telemetry, Paging and PMR/Trunked Radio applications.
  • Housed inside a a high-strength glass fibre shroud, the antenna includes an integrated mounting clamp allowing easy installation on poles or horizontal rails.
  • The robust antenna design ensures reliable operation in harsh environmental conditions.
  • Former Jaybeam brand product.

RADIATION PATTERNS

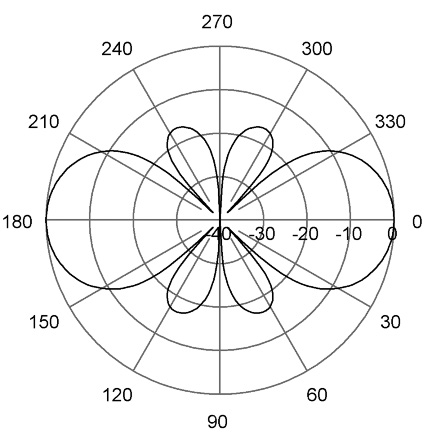

E-Plane | 450 MHz
