766.65.16.xx

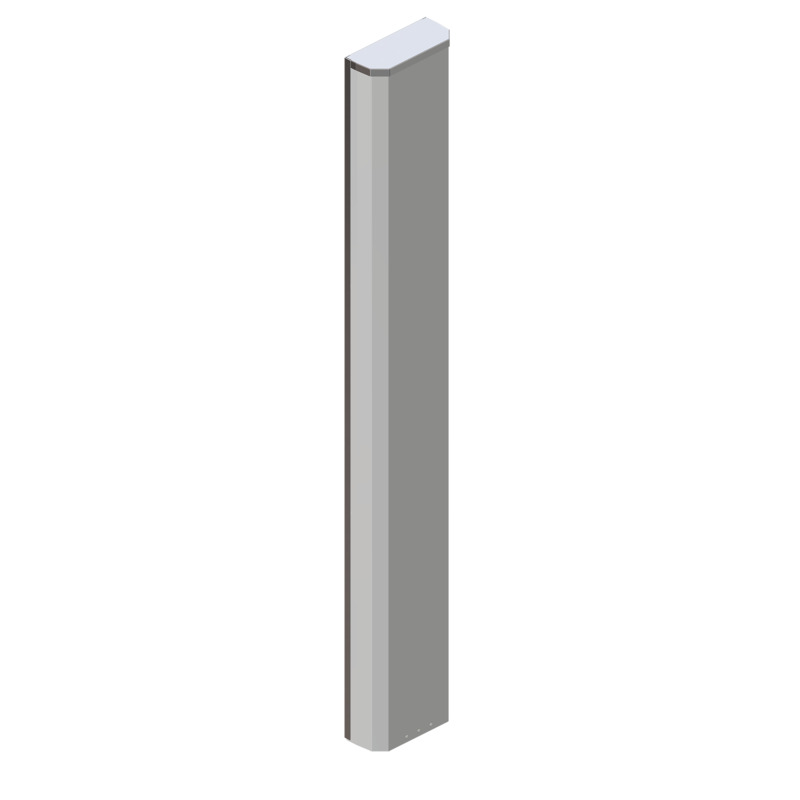

XPOL panel antenna 65°, 16 dBi, 380 – 470 MHz

Find Out More
View Variations
Data Sheet
CE Certification

Other Files

766.65.16.xx

Quickly identify the correct ordering code.

766.65.16.xx
Electrical
Model 766.65.16.xx
Frequency 380 – 470 MHz
Max. Input Power 2 x 400 W
3 dB Beamwidth, H-Plane 70° ±2°
Polarisation ±45°
3 dB Beamwidth, E-Plane 13° ±1°
Impedance 50 Ω
Gain 13.9 dBd (16 dBi)
Port-Port Isolation ≥ 27dB
VSWR < 1.5:1
Front-To-Back Ratio > 20 dB
Cross Polar Discrimination 30 dB
Passive Intermodulation -153 dBc (3rd Order, 2 x Tx @ 43 dBm)
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Environmental
Operating temperature range -40 °C to +75 °C
Survival Wind Speed 270 km/h
Ingress Protection IP56
Mechanical
Connection(s) 7/16 DIN(f)
Also available with N(f) or 4.3-10(f)
Materials Radome : White ASA UV resistant
Housing : Aluminium 5083 (marine)
Dimensions 2770 x 406 x 178 mm (excl. connectors and bracket plates)
Wind Load 893N (160 km/h)
Weight 20.35 kg
Mounting Bracket Fixed Bracket : (TBC)
(Ordered Separately)
Alternate Mounting Bracket Tilt bracket : (TBC) (0 – 12°) (TBC)
  • XPOL Panel antenna designed for LTE450 and TETRA / P25 base station applications
  • High gain model featuring 0 & 6 degrees downtilt.
  • Stable performance a low PIM specification over a wide bandwidth.
  • Housing of the antenna is made from corrosion resistant marine grade aluminium.
  • The antennas compact design gives very low wind loading characteristics, and combined with the low weight of the antenna, aids in the reduction of structural loading.
