766.700

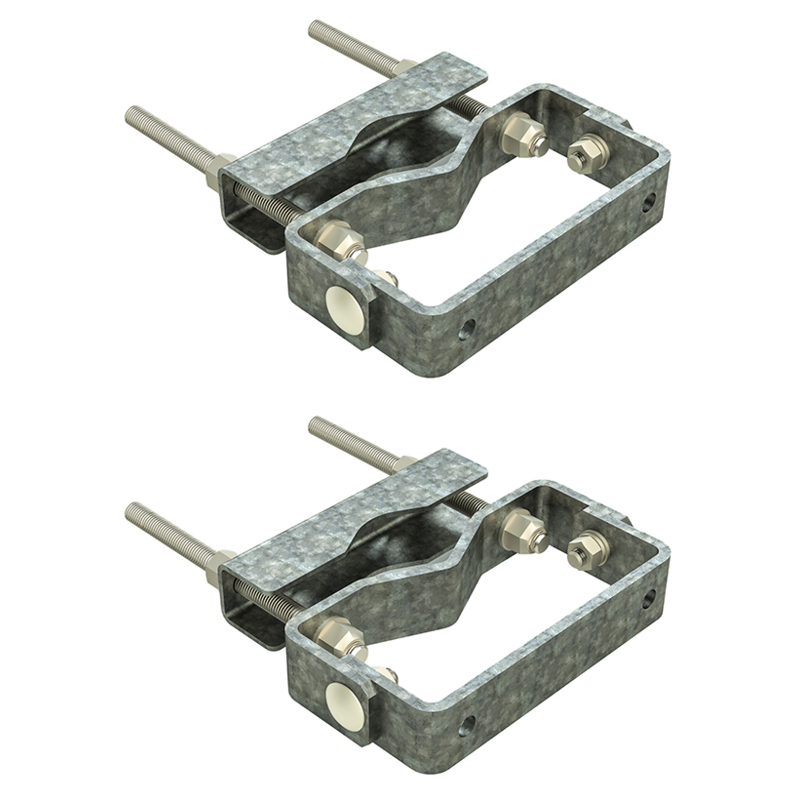

Panel Bracket Kit 0° Fixed ø38 – ø120 mm Pole

Find Out More
Data Sheet
CE Certification

Other Files

766.700
Electrical
Model 766.7
Mechanical
Clamp Type Panel clamp
Materials Clamp body – galv. steel
Fixings – stainless steel A2
Historic Brand Jaybeam
Dimensions See Dimension details
Torque Max. M10: 33 – 40 Nm
M12: 59 – 66 Nm
Weight Approx. 4.22 kg / 9 lb.
Mounting 38 – 120 mm / 1.50 – 4.72 in. dia.
  • Use to securely attach the range of 760/766 Panel antennas to a vertical pole or mast.
  • Supplied with stainless bolts to suit 38 – 120 mm diameter poles.
  • Compatible with panel antennas 760/766 measuring 0.92 m and 1.84 m in lenght.

No content found

This product doesn’t have any diagrams yet.

Model Product No. Add To Quote
Panel Bracket Kit 0° Fixed ø38 – ø120 mm Pole 766.700

Login required

You need to be logged in into your account to view downloadable documents.

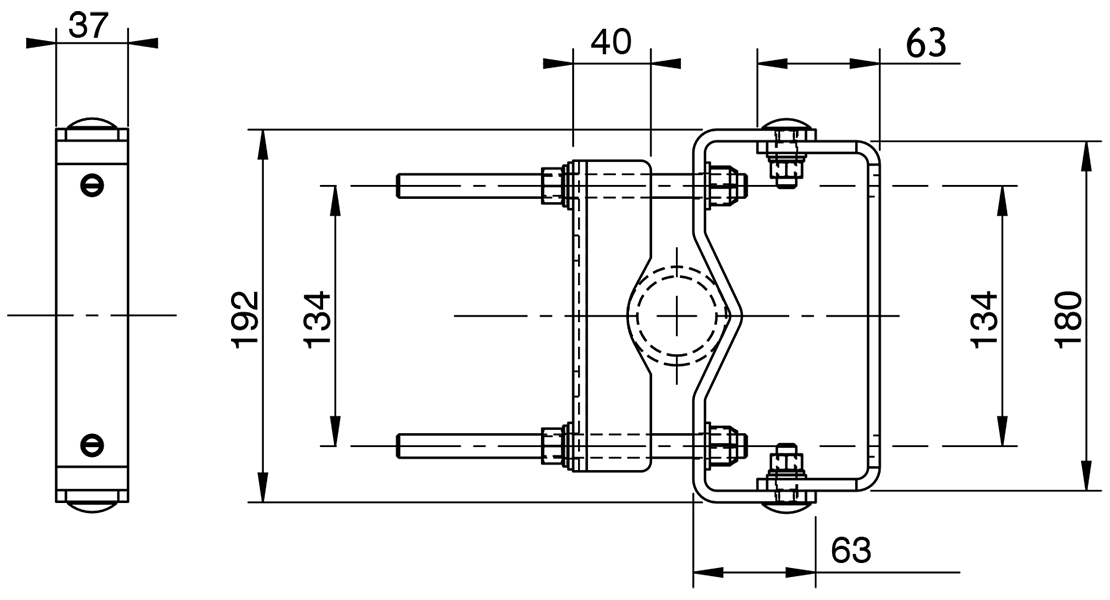

Dimension

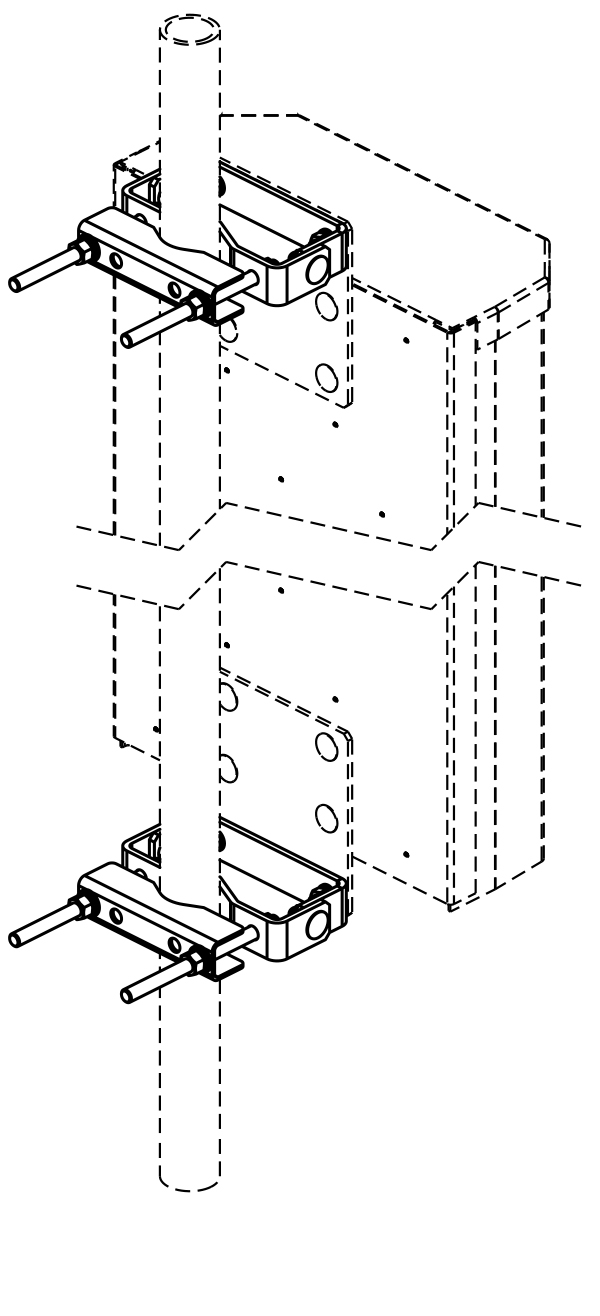

Mounting details

766.700 Back View
