7680000

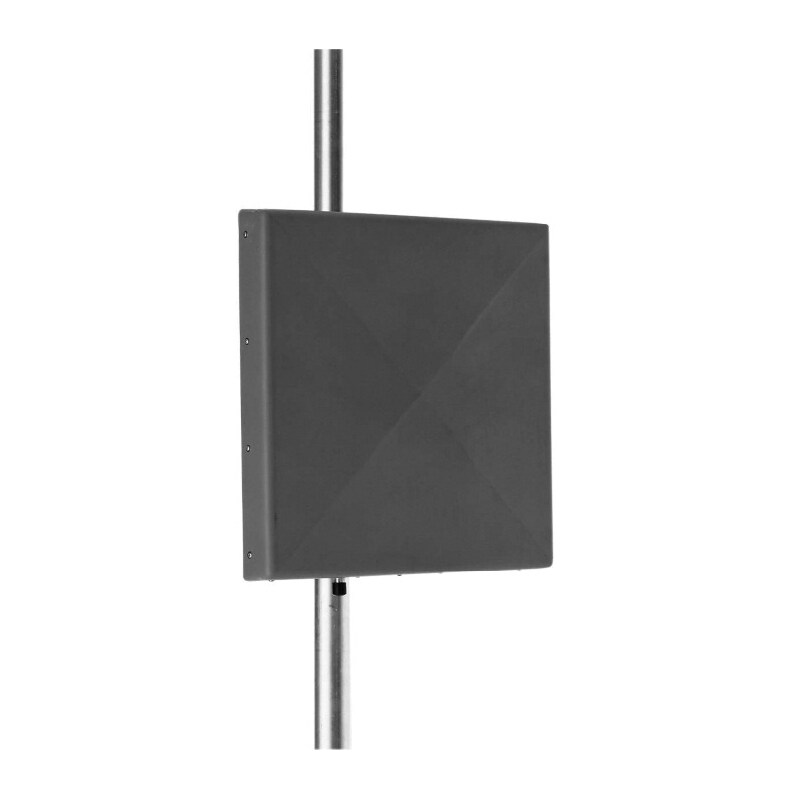

Panel antenna 1350-1517MHz, 17 dBi

Find Out More
Data Sheet
CE Certification

Other Files

7680000
Electrical
Frequency 1350 – 1517 MHz
Max. Input Power 100 W
3 dB Beamwidth, H-Plane 23 °
Polarisation Linear (Vertical or Horizontal)
3 dB Beamwidth, E-Plane 23 °
Impedance 50 Ω
Gain 14.9 dBd (17 dBi)
VSWR < 1.3:1
Front-To-Back Ratio > 30 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
Mechanical
Connection(s) N(f)
Materials Shroud, ASA
Housing, Aluminium
Historic Brand Jaybeam
Dimensions 505 x 465 x 152 mm / 19.9 x 18.3 x 6.0 in.
Wind Load 300 N (160km/h)
Weight 4 kg / 8.82 lb
Mounting Bracket 0900996/00 – To fit pipes of up to 115mm diameter in addition to the integral mounting bracket.
(Ordered Separately)
Mounting Integral mounting bracket to fit 48 mm diameter pipe and provides ±8° mechanical tilt.
  • A high gain, SHF Panel antenna designed for links in the 1.4GHz band. A planar array of dipole elements concealed inside a low loss radome to provide highly directional performance in a low profile design. Produced to the highest quality standards these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • • Former Jaybeam brand product.

RADIATION PATTERNS

H-Plane | 1434 MHz

H-Plane | 1434 MHz

RADIATION PATTERNS

E-Plane | 1434 MHz

E-Plane | 1434 MHz

Model Product No. Add To Quote
Panel antenna 1350-1517MHz, 17 dBi 7680000
